SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Airflow


10 - Control


11 - Unit


12 - Icemaker, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

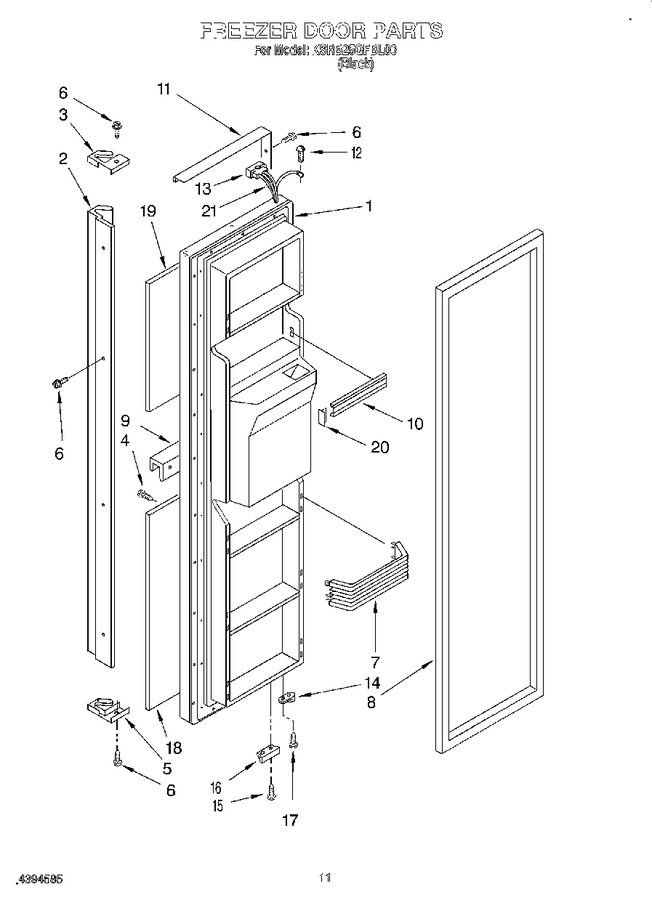

1	2194961		Freezer Door (includes No.8 And Dispenser Front Parts)		Appelez-nous	-
2	2194946		Handle		Appelez-nous	-
3	2198098		End Cap		Appelez-nous	-
4	489374		Screw		Appelez-nous	-
5	2198100		End Cap, Bottom		Appelez-nous	-
6	489481		Screw		Appelez-nous	-
7	2171070		Shelf Bin (4)		Appelez-nous	-
8	2159082		Door Gasket, Magnetic (service)				$ 332.49
9	2194945		Trim, Dispenser		Appelez-nous	-
10	WPW10307490		Trim, Door Shelf   (Replaces: 2177845)			Immediately	$ 24.27
11	2194953		Trim, Door		Appelez-nous	-
12	WP488234		Screw   (Replaces: 489422)				$ 7.08
13	WP2154473		Connector   (Replaces: 2154473)				$ 24.83
14	4318165		Door Closer, Upper Cam   (Replaces: 2182132)			Immediately	$ 29.74
15	WP489483		Screw   (Replaces: 489420)				$ 11.41
16	2155334		Bracket, Door Stop		Appelez-nous	-
17	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
18	1126017		Black Glass, Lower		Appelez-nous	-
19	1126016		Black Glass, Upper		Appelez-nous	-
20	WP2156006		Plug-trim (2)   (Replaces: 2156006)			Immediately	$ 12.79
21	2180229		Wire Harness				$ 73.70
