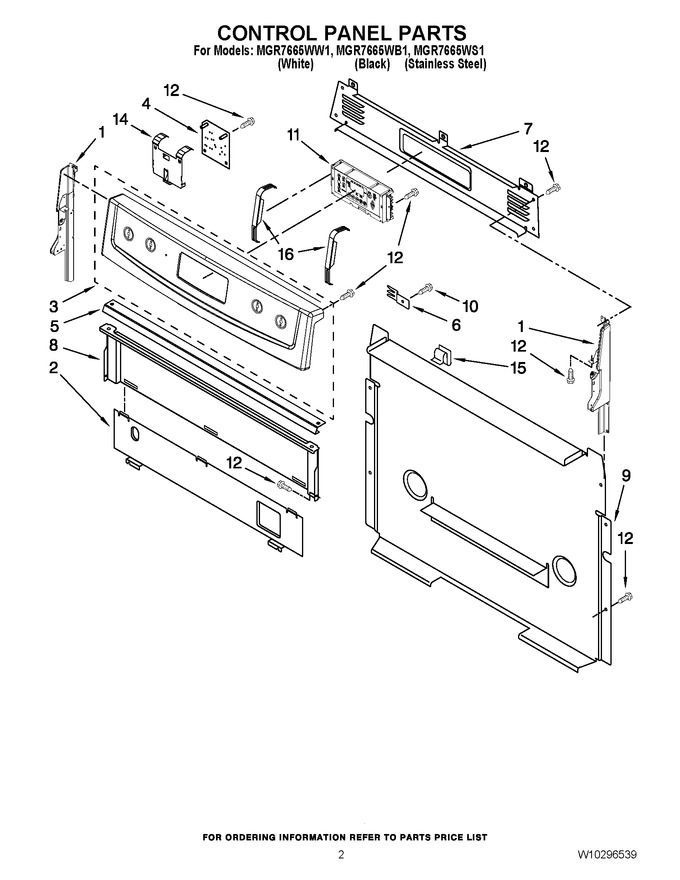

02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer & Broiler Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219365		Endcap, Left Hand (white)   (Replaces: W10184433)				$ 42.45
1	W11219665		Endcap, Right Hand (black)   (Replaces: W10184438)				$ 45.17
1	W11219370		Endcap, Right Hand (white)   (Replaces: W10184434)				$ 60.83
1	W11219664		Endcap, Left Hand (black)   (Replaces: W10184437)				$ 153.83
2	8053505		Shield-heat, Lwr				$ 165.89
3	W10292029		Panel, Console (white)				$ 119.24
3	W10292030		Panel, Console (black)				$ 118.74
3	W10292031		Panel, Console (stainless Steel)				$ 118.66
4	WPW10331686		Module, Spark   (Replaces: 9758080)			Immediately	$ 393.86
5	W10211996		Brkt-mntg,console		Appelez-nous	-
6	8523412		Bracket, Support				$ 167.90
7	W10198745		Cover, Upper				$ 128.90
8	W10192841		Shield, Heat				$ 106.69
9	W10184370		Cover, Lower		Appelez-nous	-
10	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
11	W10271768		Control, Range (white)				$ 367.52
11	W10271769		Control, Range (black)				$ 367.52
12	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
14	W10516463		Bracket, Dsi Wpl   (Replaces: W10137524)		Appelez-nous	-
15	WP8273564		Clip   (Replaces: 8273564)				$ 12.66
16	W11230932		Bracket, Eoc Mount   (Replaces: W10138683)			Immediately	$ 84.81
