SELECT A DIAGRAM

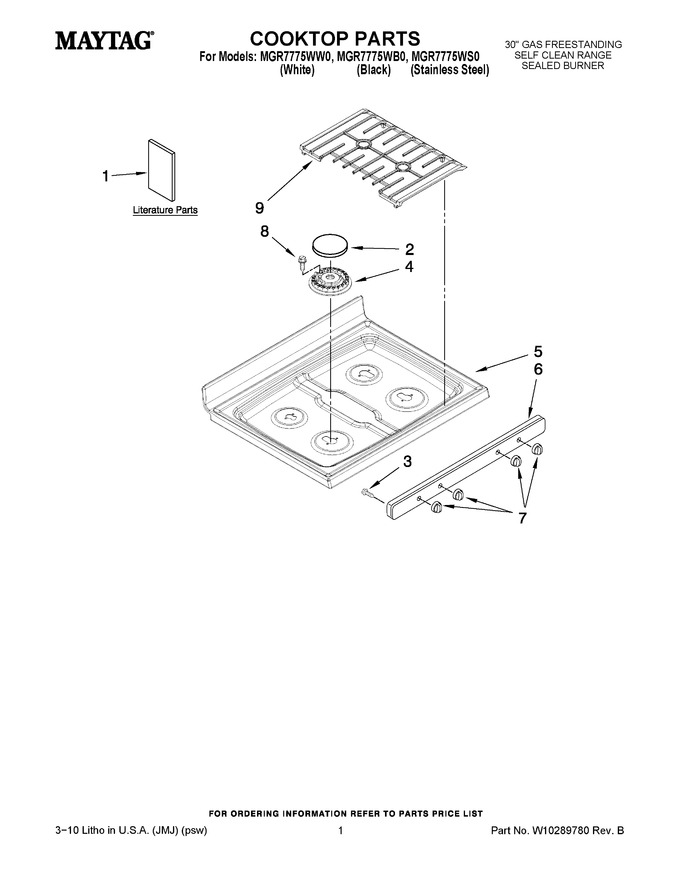

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Drawer & Broiler Parts


06 - Door Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10269527		Use & Care Guide		Appelez-nous	-
1	W10198636		Tech Sheet		Appelez-nous	-
1	W10196161		Installation Instructions		Appelez-nous	-
1	9757142		Anti-tip Template (english/spanish)		Appelez-nous	-
1	9757143		Anti-tip Template (eenglish/french)		Appelez-nous	-
1	9762761		Safer Cooking Tips		Appelez-nous	-
2	W10169973		Cap, Burner Lf & Rf (black)				$ 102.63
2	WPW10183370		Cap, Burner Rr (black)   (Replaces: W10183370)				$ 67.99
2	W10169974		Cap, Burner Lr (grey)				$ 29.04
2	WPW10183369		Cap, Burner Lr (black)   (Replaces: W10183369)				$ 68.37
2	WPW10169975		Cap, Burner Rr (grey)   (Replaces: W10169975)				$ 70.50
3	WP3196557		Screw   (Replaces: 3196557)			Immediately	$ 7.95
4	WPW10406878		Burner (lf & Rf (12k))   (Replaces: 8286183)				$ 107.48
4	WPW10406283		Burner (lr - Rf(9k))   (Replaces: W10194076)				$ 78.02
4	WPW10406243		Burner (rr(6k))   (Replaces: 8286181)			Immediately	$ 39.08
5	W10153562		Cooktop (white)		Appelez-nous	-
5	W10153563		Cooktop (black)		Appelez-nous	-
6	WP8523854		Panel, Manifold (white)   (Replaces: 8523854)				$ 290.58
6	8523855		Panel, Manifold (black)				$ 176.18
7	WPW10200192		Knob, Control (4) (white)   (Replaces: W10200192)			Immediately	$ 83.92
7	WPW10200193		Knob, Control (4) (black)   (Replaces: W10200193)				$ 24.18
8	WP3368921		Screw   (Replaces: 3400701)			Immediately	$ 8.56
9	W10233577		Grate, Burner (2) (grey)		Appelez-nous	-
9	W10233576		Grate, Burner (2) (black)		Appelez-nous	-
