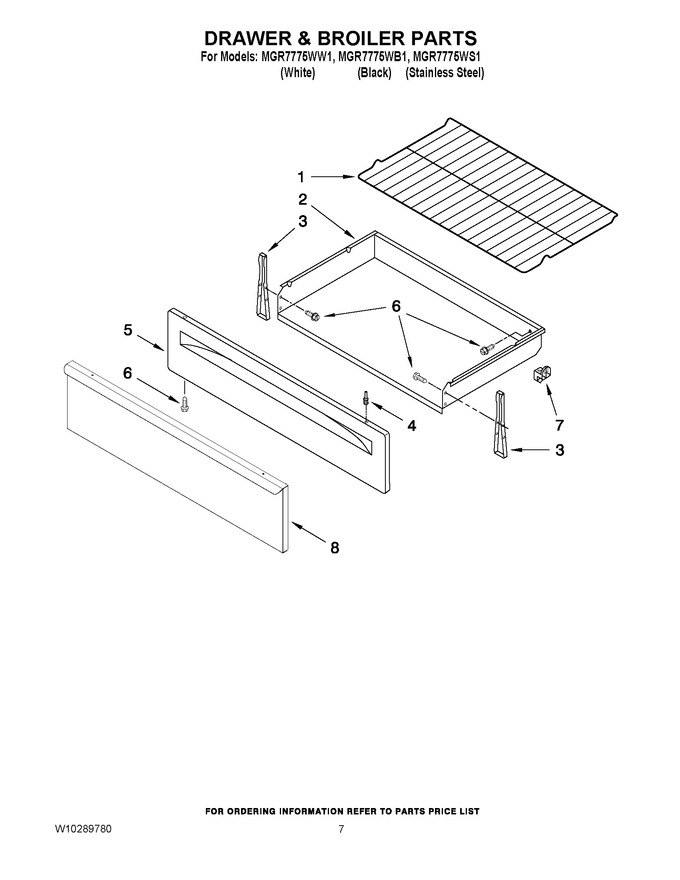

01 - Cooktop Parts
02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Drawer & Broiler Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11520287 | Rack, Oven (Replaces: W10268578) |
|
Immediately | $ 46.84 | ||||
| 2 | W10296838 | Drawer, Storage |
|
- | |||||
| 3 | W11759228 | Ss Only (Replaces: 3196817) |
|
$ 28.27 | |||||
| 3 | W10174397 | Bracket, Drawer |
|
$ 38.13 | |||||
| 4 | WP3196813 | Rivet, Push (black) (Replaces: 3196813) |
|
Immediately | $ 11.20 | ||||
| 4 | WP3196814 | Rivet, Push (white) (Replaces: 3196814) |
|
Immediately | $ 11.07 | ||||
| 5 | W11230486 | Panel, Drawer Frnt (white) (Replaces: W10022090) |
|
$ 211.49 | |||||
| 5 | W11230490 | Panel, Drawer Frnt (black) (Replaces: W10022100) |
|
$ 211.59 | |||||
| 6 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 8.18 | ||||
| 7 | WP8053334 | Spacer, Glide (Replaces: 8053334) |
|
Immediately | $ 7.84 | ||||
| 8 | W10244872 | Panel, Stainless |
|
$ 106.68 |
