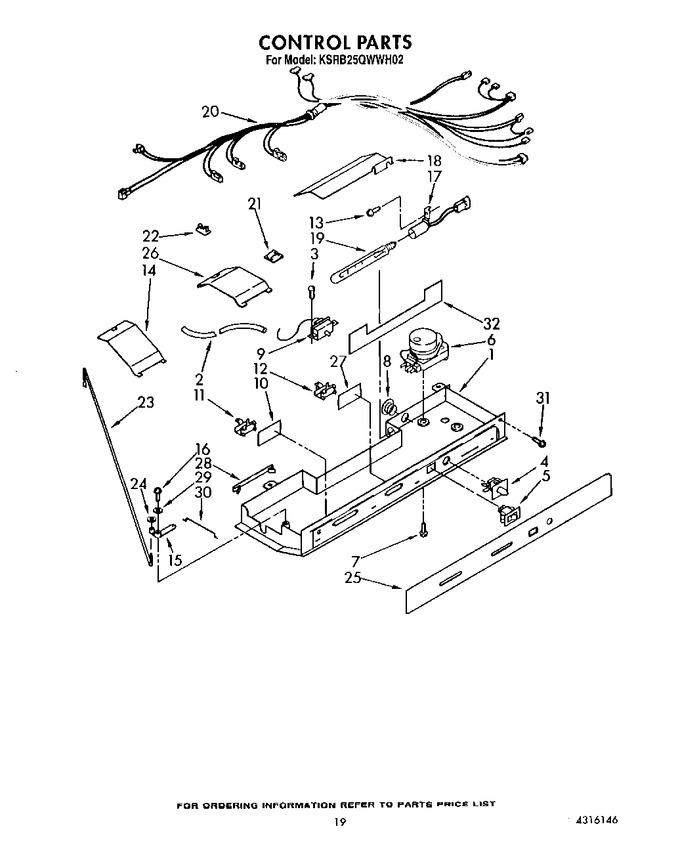

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1125614		Control Box		Appelez-nous	-
2	WP2196003		Tube Barrier, Thermostat   (Replaces: 1115241)				$ 8.35
3	2006254		Screw   (Replaces: 489214)				$ 13.79
4	WP2149705		Light Switch   (Replaces: 1123923)			Immediately	$ 40.40
5	1125964		Switch, Lighted		Appelez-nous	-
6	CC901		Defrost Timer, (10 Hr.)   (Replaces: 1127570)			Immediately	$ 58.27
7	489392		Screw (2)   (Replaces: 489192)				$ 14.02
8	940014		Hole Plug				$ 18.33
9	1125769		Thermostat Assembly		Appelez-nous	-
10	1126028		Window		Appelez-nous	-
11	1125592		Slide, Air Control		Appelez-nous	-
12	1125591		Slide, Thermostat		Appelez-nous	-
13	WP489478		Screw   (Replaces: 489242)				$ 8.18
14	1118072		Light Bar		Appelez-nous	-
15	1125589		Pivot Arm		Appelez-nous	-
16	627068		Screw				$ 12.73
17	1110690		Light Socket		Appelez-nous	-
18	1118033		Heat Shield		Appelez-nous	-
19	WP548049		Light Bulb   (Replaces: 548049)				$ 90.67
20	1125646		Control Box Harness		Appelez-nous	-
21	WP1115374		Clip, Wiring   (Replaces: 1115374)				$ 8.14
22	1115375		Clip, Wiring				$ 11.15
23	1125587		Connecting Rod		Appelez-nous	-
24	489285		Fastener, Push-on		Appelez-nous	-
25	1126144		Escutcheon, Control Box		Appelez-nous	-
26	1126089		Light Bar		Appelez-nous	-
27	1126027		Window		Appelez-nous	-
28	1125811		Clip, Control Box		Appelez-nous	-
29	489203		Spring Washer		Appelez-nous	-
30	1125590		Connecting Rod (short)		Appelez-nous	-
31	WPW10141645		Screw (4)   (Replaces: 489084)				$ 8.05
32	1127141		Heat Shield		Appelez-nous	-
