Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11520287 Rack, Oven   (Replaces: W10179196) In-Stock Immediately $ 46.84

2 W10272883 Roller, Drawer Special Order $ 7.90

3 WP488130 Nut, Lock   (Replaces: 7103P082-60) Special Order $ 7.32

4 WP3405F037-80 Drawer, Storage   (Replaces: 3405F037-80) Special Order $ 355.81

5 7118P032-60 Shaft, Roller Appelez-nous -
6 W11233072 Screw   (Replaces: 7101P388-60) In-Stock Immediately $ 14.72

7 W10172598 Panel, Drawer Front (biscuit) Appelez-nous -
7 W10172596 Panel, Drawer Front (white) Special Order $ 75.36

7 W10172597 Panel, Drawer Front (black) Appelez-nous -
7 W10172599 Panel, Drawer Front (stainless) Appelez-nous -
8 W10173314 Panel, Inner Appelez-nous -
9 8038P037-60 Drawer, Stop Appelez-nous -
10 WP7101P072-60 Screw   (Replaces: 7101P072-60) Special Order $ 8.06

11 3406P034-51 Rail, Drawer Special Order $ 33.42


    View Diagram in Separate Window     Print Icon   Print Part List

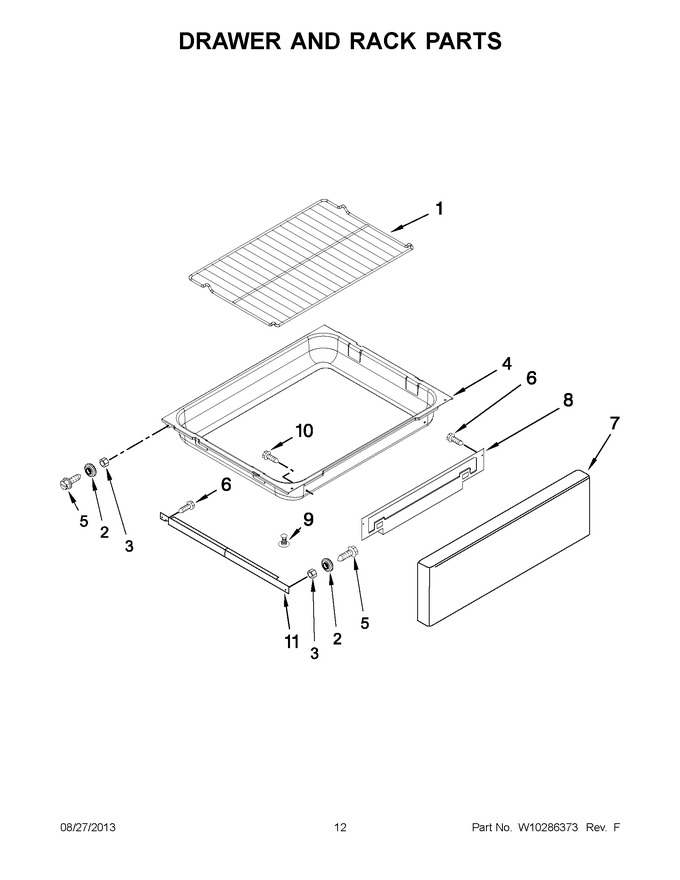

Diagram for MGR8670WB0
