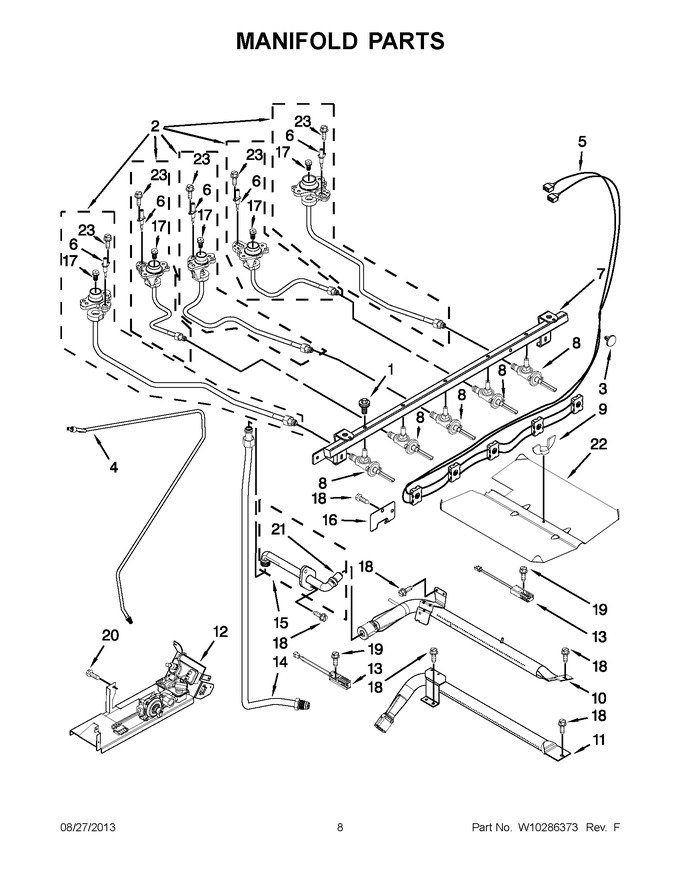

05 - Manifold Parts


06 - Door Parts


07 - Drawer And Rack Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP74009857		Screw, Valve   (Replaces: 7101P651-60)				$ 5.78
2	W10169906		Holder, Orifice (left Front)				$ 111.49
2	W10169903		Holder, Orifice (center)		Appelez-nous	-
2	W10169901		Holder, Orifice (left Rear)		Appelez-nous	-
2	W10169902		Holder, Orifice (right Rear)		Appelez-nous	-
2	W10169907		Holder, Orifice (right Front)				$ 48.54
3	74008761		Spacer, Snap-in   (Replaces: 8010P149-60)				$ 8.81
4	7506P361-60		Tubing, Main Supply		Appelez-nous	-
5	WP74010753		Harness, Igniter Includes Switches   (Replaces: 7403P983-60)				$ 248.88
6	WPW10216419		Electrode   (Replaces: W10216419)			Immediately	$ 36.72
7	7513P499-60		Pipe, Manifold		Appelez-nous	-
8	W10269504		Valve (7k) (center)				$ 215.40
8	7502P500-60		Valve (12k) (left Front & Right Rear)				$ 118.46
8	WP7502P499-60		Valve (5k) (left Rear)   (Replaces: 7502P499-60)				$ 273.86
8	74010751		Valve (16k) (right Front)   (Replaces: 7502P501-60)				$ 283.44
9	7103P030-60		Wing Nut				$ 7.43
10	W10160904		Burner, Broiler				$ 210.55
11	7505P331-60		Burner, Bake		Appelez-nous	-
12	7501P233-60		Valve/regulator		Appelez-nous	-
13	74007498		Ignitor, Electric Ignition (broil)   (Replaces: 7432P106-60)			Immediately	$ 87.11
13	WP7432P136-60		Ignitor, Electric (bake)   (Replaces: 7432P136-60)			Immediately	$ 94.02
14	74008830		Tubing (broiler Fitting To Valve)   (Replaces: 7506P368-60)				$ 87.44
15	W10247148		Fitting, Broiler				$ 14.45
16	4005F421-45		Cover,ignitor Wire		Appelez-nous	-
17	WPW10170506		Orifice (5k) (left Rear)   (Replaces: W10170506)				$ 97.85
17	W10251991		Orifice (7k) (center)				$ 90.76
17	W10178934		Orifice (12k) (left Front)			Immediately	$ 103.60
17	WPW10170508		Orifice (9.5k) (right Rear)   (Replaces: W10170508)				$ 95.21
17	W10170511		Orifice (17k) (right Front)				$ 42.01
18	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
19	W11684507		Screw   (Replaces: 3196385)				$ 14.27
20	WP3368921		Screw   (Replaces: 3400701)			Immediately	$ 8.56
21	74008834		Orifice (broil)   (Replaces: 7507P366-60)				$ 54.55
22	3601P336-45		Baffle, Broil Burner				$ 227.09
23	WP8273062		Screw   (Replaces: 8273062)			Immediately	$ 7.91
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10271869		Spuds, Lp Gas (kit Of 5)				$ 14.79
