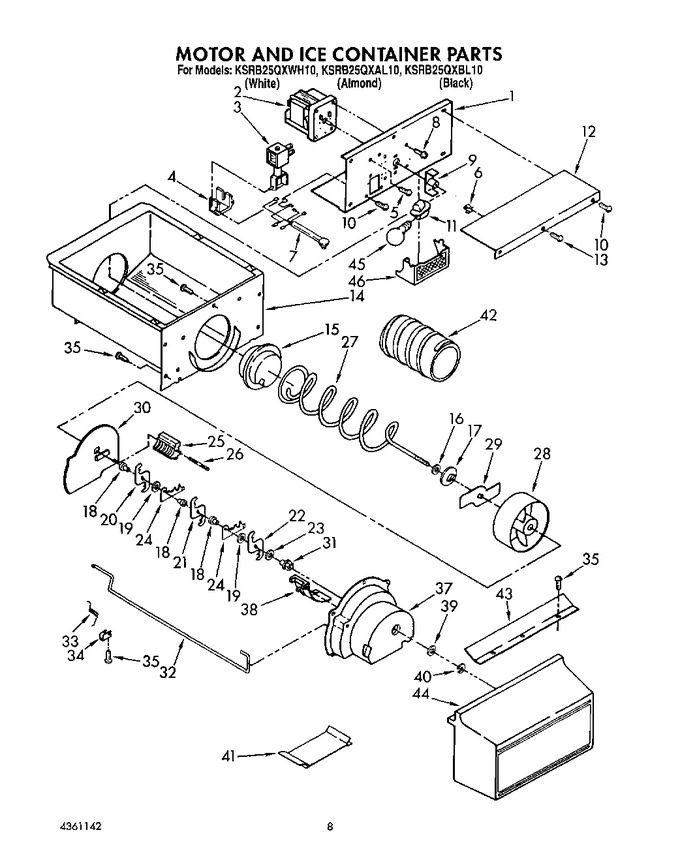

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1118386		Bracket, Motor		Appelez-nous	-
2	WP2188242		Motor, Dispenser   (Replaces: 2152118)				$ 387.12
3	WP2152713		Solenoid Assembly   (Replaces: 2152713)				$ 250.11
4	W10850503		Guide, Solenoid   (Replaces: 2149100)				$ 10.87
5	487523		Screw (2)		Appelez-nous	-
6	WP1115374		Clip, Wiring   (Replaces: 1115374)				$ 8.14
7	2149943		Wiring Assembly, Ice Dispenser		Appelez-nous	-
8	303776		Screw, 8-32 X 5/16 (4)   (Replaces: 488906)		Appelez-nous	-
9	WPW10169511		Coupling, Motor   (Replaces: 983663)				$ 24.51
10	WP489478		Screw   (Replaces: 489242)				$ 8.18
11	4387478		Socket, Light   (Replaces: 851067)			Immediately	$ 115.67
12	1115339		Cover, Motor		Appelez-nous	-
13	00487294		Screw, 8-32 X 3/8   (Replaces: 487294)				$ 175.09
14	WPW10670845		Ice Container   (Replaces: 2152702)				$ 199.19
15	W10749708		Coupling, Conveyor   (Replaces: 983668)				$ 27.44
16	1118480		Stop, Cone		Appelez-nous	-
17	1119074		Feeder Cone		Appelez-nous	-
18	WP1119005		Spacer, Step (3)   (Replaces: 1119005)				$ 11.74
19	WP1119007		Spacer, Flat (2)   (Replaces: 1119007)				$ 14.77
20	W10278731		Blade, Rotary   (Replaces: 1119006)				$ 90.87
21	W10278732		Blade, Rotary   (Replaces: 1119012)				$ 91.00
22	W10278733		Blade, Rotary   (Replaces: 1119013)				$ 91.00
23	489235		Washer, Plain				$ 8.05
24	1119009		Blade, Fixed (2)				$ 72.21
25	2157405		Block, Blade				$ 22.33
26	489229		Roll Pin				$ 48.47
27	W10422851		Conveyor   (Replaces: 1119003)				$ 174.14
28	4388736		Drum   (Replaces: 2157406)				$ 96.97
29	4388736		Drive Bar   (Replaces: 1118470)				$ 96.97
30	W10852691		Floating Baffle   (Replaces: 2157404)			Immediately	$ 34.85
31	WP1119018		Nut, Bearing   (Replaces: 1119018)				$ 7.90
32	2147138		Control Arm		Appelez-nous	-
33	1119020		Spring, Return				$ 19.13
34	1119021		Retainer Clip, Rod				$ 10.96
35	WP488787		Screw, (8-18 X 1/2)   (Replaces: 488886)				$ 11.26
37	WPW10185018		Housing, Crusher   (Replaces: 2157407)				$ 130.65
38	WP1119017		Deflector, Ice   (Replaces: 1119017)				$ 7.95
39	489234		Washer, Plain				$ 14.04
40	WP489236		Retainer Ring   (Replaces: 489236)			Immediately	$ 12.78
41	2152700		Housing Filler		Appelez-nous	-
42	4317870		Sleeve-auger   (Replaces: 2152021)				$ 136.02
43	1119043		Deflector, Ice Container		Appelez-nous	-
44	1126036		Front Cover, Ice Container		Appelez-nous	-
45	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
46	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
46	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
46	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
46	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
46	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
46	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
46	876370		Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
46	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
46	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
46	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
46	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
46	983359		Light Lens, Dispenser		Appelez-nous	-
46	350942		Primer White (13 Oz. Spray Can)				$ 94.14
46	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
46	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
46	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
46	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
46	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
46	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
46	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
46	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
46	876370		Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``)				$ 243.14
46	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
46	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
46	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
46	833938		Kit, Terminal Connector				$ 8.47
46	515393		Transformer (115-230 Volt)		Appelez-nous	-
	LIT4361142		Parts List		Appelez-nous	-
	1117510		Torx Key				$ 5.84
	LIT1125682		Label, Use & Care Guide		Appelez-nous	-
	LIT2154810		Service & Wiring Sheet		Appelez-nous	-
	LIT1117998		Energy Label		Appelez-nous	-
	LIT628107		Modular Icemaker Service Sheet		Appelez-nous	-
