SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Manifold Parts


06 - Door Parts


07 - Drawer And Rack Parts


08 - Optional Parts (not Included)

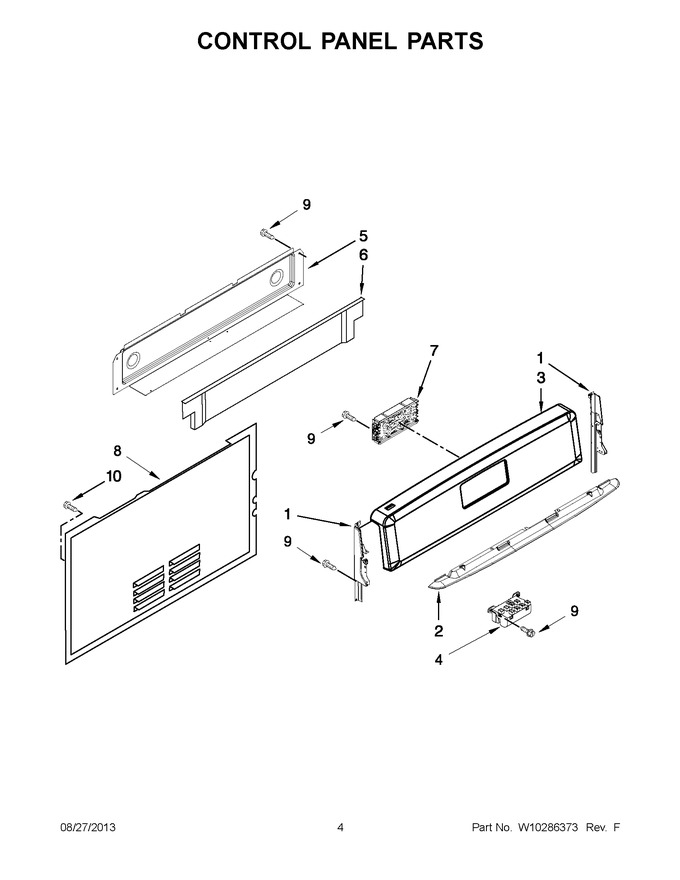

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10163967		Endcap (white (left Hand))				$ 32.00
1	W10163969		Endcap (black (left Hand))				$ 34.61
1	W10171416		Endcap (biscuit (left Hand))		Appelez-nous	-
1	W10163970		Endcap (black (right Hand))				$ 34.76
1	W10163968		Endcap (white (right Hand))		Appelez-nous	-
1	W10171417		Endcap (biscuit (right Hand))		Appelez-nous	-
2	3604F382-09		Heat Shield,visor (black)				$ 50.83
2	3604F382-81		Heat Shield, Visor (white)				$ 32.49
2	3604F382-88		Heat Shield,visor (biscuit)				$ 40.19
3	W10225561		Panel, Control (white)		Appelez-nous	-
3	W10225562		Panel, Control (black)		Appelez-nous	-
3	W10225563		Panel, Control (biscuit)		Appelez-nous	-
3	W10225564		Panel, Control (stainless)				$ 118.55
4	74009098		Module, Spark   (Replaces: 7431P053-60)				$ 355.95
5	W10243038		Cover, Console-upper				$ 49.02
6	3604F381-19		Shield, Vent Ext				$ 31.31
7	W10236265		Control (includes Overlay) (white)		Appelez-nous	-
7	WPW10271776		Control (includes Overlay) (black)   (Replaces: W10236266)				$ 372.90
7	WPW10271777		Control (includes Overlay) (biscuit)   (Replaces: W10236267)				$ 454.80
8	W10243047		Cover, Main Wire		Appelez-nous	-
9	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72

    View Diagram in Separate Window       Print Part List
