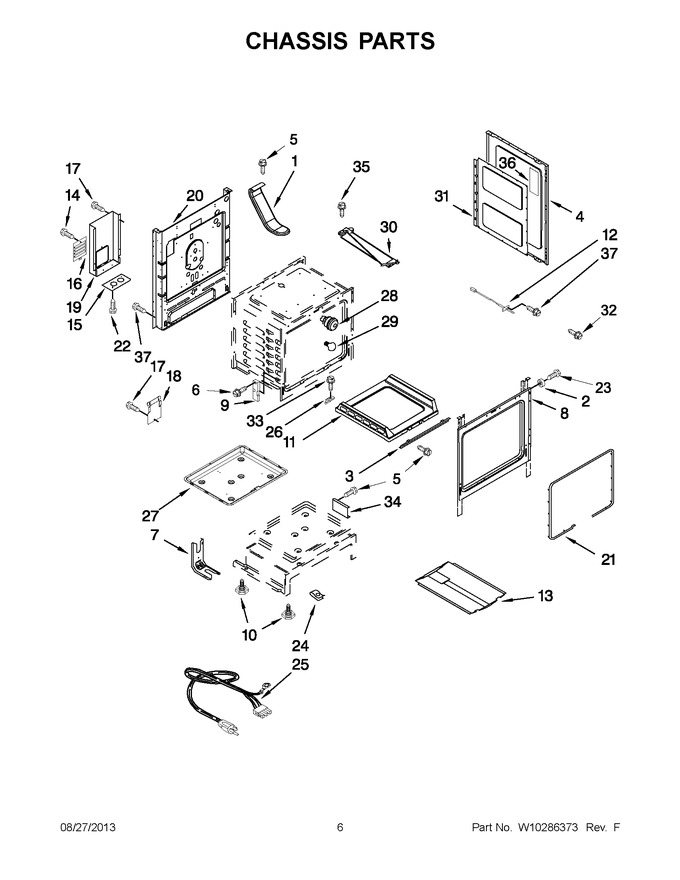

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8026P080-60		Vent, Oven		Appelez-nous	-
2	74008690		Spacer, Side Panel   (Replaces: 8010P148-60)				$ 22.74
3	3807P680-45		Support, Oven Bottom				$ 33.39
4	2618F172-57		Panel, Side (biscuit)				$ 48.84
4	2618F172-58		Panel, Side (white)				$ 47.61
4	2618F172-69		Panel, Side (black)				$ 81.90
5	W11233072		Screw   (Replaces: 7101P388-60)			Immediately	$ 14.72
6	WP4159193		Screw   (Replaces: 7101P282-60)				$ 5.07
7	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F656-51)			Immediately	$ 6.11
8	N/P		Frame, Front (not Serviced)		Appelez-nous	-
9	WP74010551		Hinge, Receiver   (Replaces: 7106P125-60)			Immediately	$ 14.70
10	W11665456		Foot, Leveler   (Replaces: 7101P507-60)			Immediately	$ 29.52
11	WPW10211368		Bottom, Oven   (Replaces: W10211367)			Immediately	$ 337.76
12	WPW10131827		Sensor, Oven   (Replaces: W10131827)				$ 275.58
13	W11775243		Baffle, Burner   (Replaces: 3601P356-45)				$ 91.47
14	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
15	3605F146-51		Plate, Conduit				$ 6.06
16	4005P704-51		Cover, Access Plate				$ 7.07
17	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
18	4005F753-45		Cover, Broil		Appelez-nous	-
19	4005P711-51		Cover, Lower Wire				$ 6.05
20	W10205618		Back, Main				$ 78.53
21	W11562931		Gasket, Door   (Replaces: W10162385)			Immediately	$ 87.76
22	WP4159193		Screw   (Replaces: 7101P336-60)				$ 5.07
23	7101P618-60		Screw		Appelez-nous	-
24	74008835		Clip, Foot   (Replaces: 7112P158-60)				$ 10.44
25	7402P109-60		Cord, Power				$ 8.90
26	3801P798-51		Bracket, Oven Support		Appelez-nous	-
27	3401F082-45		Pan, Bake		Appelez-nous	-
28	W11594027		Socket, Light   (Replaces: 3196701)			Immediately	$ 87.01
29	8009		Bulb, Light   (Replaces: 7407P103-60)			Immediately	$ 18.67
30	W10792991		Latch, Door Lock   (Replaces: 8002P104-60)				$ 339.59
31	3804F316-51		Retainer, Insulation		Appelez-nous	-
32	7101P385-60		Screw		Appelez-nous	-
33	WP74003976		Screw   (Replaces: 7101P500-60)				$ 7.55
34	3801P822-45		Bracket, Oven Support				$ 5.27
35	W11169708		Screw   (Replaces: 3196560)				$ 13.36
36	W10182346		Insulation, Side Panel				$ 77.83
NI	7002P424-60		Insulation, Wrap		Appelez-nous	-
NI	W10243056		Insulation, Back				$ 57.29
NI	4820F015-59		Insulation, Strap				$ 9.79
