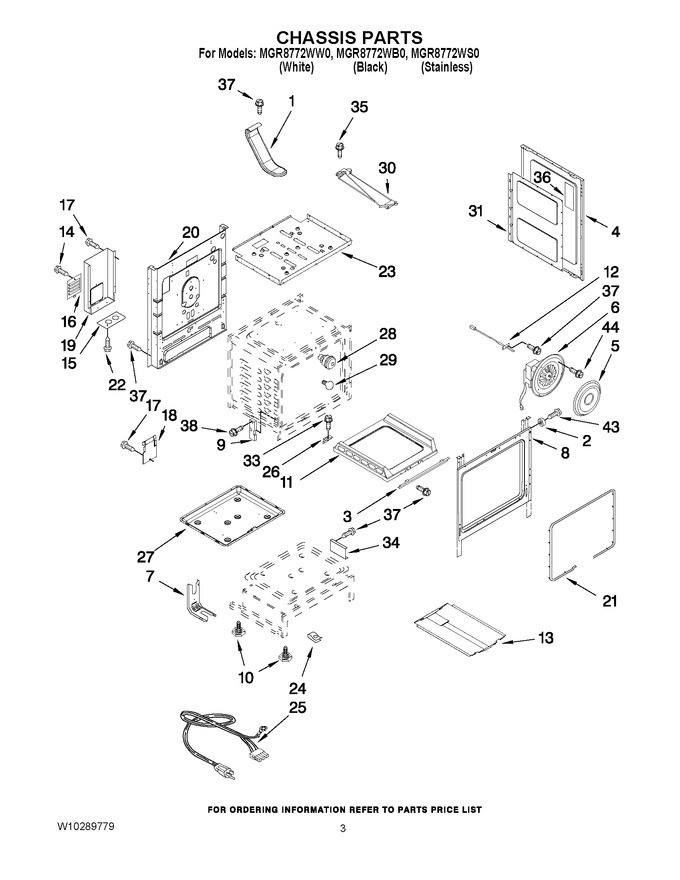

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Manifold Parts


05 - Door Parts


06 - Drawer And Rack Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8026P080-60		Vent, Oven		Appelez-nous	-
2	74008690		Spacer, Side Panel   (Replaces: 8010P148-60)				$ 22.74
3	3807P680-45		Support, Oven Bottom				$ 33.39
4	2618F172-69		Panel, Side (2) (black)				$ 81.90
4	2618F172-58		Panel, Side (2) (white)				$ 47.61
5	3605F305-19		Plate, Convection		Appelez-nous	-
6	7427P106-60		Motor, Convection		Appelez-nous	-
7	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F656-51)			Immediately	$ 6.11
8	N/P		Frame, Front (not Serviced)		Appelez-nous	-
9	WP74010551		Hinge, Receiver   (Replaces: 7106P125-60)			Immediately	$ 14.70
10	W11665456		Foot, Leveler (4)   (Replaces: 7101P507-60)			Immediately	$ 29.52
11	WPW10211368		Bottom, Oven   (Replaces: W10211367)			Immediately	$ 337.76
12	WPW10131827		Sensor, Oven   (Replaces: W10131827)				$ 275.58
13	W11775243		Baffle, Burner   (Replaces: 3601P356-45)				$ 91.47
14	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
15	3605F146-51		Plate, Conduit				$ 6.06
16	4005P704-51		Panel, Access				$ 7.07
17	W10491985		Screw (2)   (Replaces: 3196160)			Immediately	$ 7.55
18	4005F753-45		Cover, Broil		Appelez-nous	-
19	W10243045		Cover, Lower Wire		Appelez-nous	-
20	W10205618		Back, Main				$ 78.53
21	W11562931		Seal, Oven   (Replaces: W10162385)			Immediately	$ 87.76
22	WP4159193		Screw   (Replaces: 7101P336-60)				$ 5.07
23	3604P409-51		Shield, Heat		Appelez-nous	-
24	74008835		Clip (4)   (Replaces: 7112P158-60)				$ 10.44
25	7402P109-60		Cord, Power				$ 8.90
26	3801P798-51		Bracket, Oven Bottom		Appelez-nous	-
27	3401F082-45		Pan, Bake		Appelez-nous	-
28	W11594027		Light Assembly   (Replaces: 3196701)			Immediately	$ 87.01
29	8009		Bulb, Oven Light   (Replaces: 7407P103-60)			Immediately	$ 18.67
30	W10792991		Latch, Door Lock   (Replaces: 8002P104-60)				$ 339.59
31	3804F316-51		Retainer, Insulation		Appelez-nous	-
33	W11347848		Screw (2)   (Replaces: 7101P376-60)				$ 14.23
34	3801P822-45		Bracket, Oven				$ 5.27
35	W11169708		Screw   (Replaces: 3196560)				$ 13.36
36	W10182346		Insulation				$ 77.83
37	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
38	WP4159193		Screw (4)   (Replaces: 7101P282-60)				$ 5.07
43	7101P618-60		Screw		Appelez-nous	-
44	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
NI	7002P424-60		Insulation, Wrap		Appelez-nous	-
NI	W10243056		Insulation, Back				$ 57.29
NI	4820F015-59		Strap, Insulation				$ 9.79
NI	3804F300-51		Retainer, Insul.				$ 69.39
