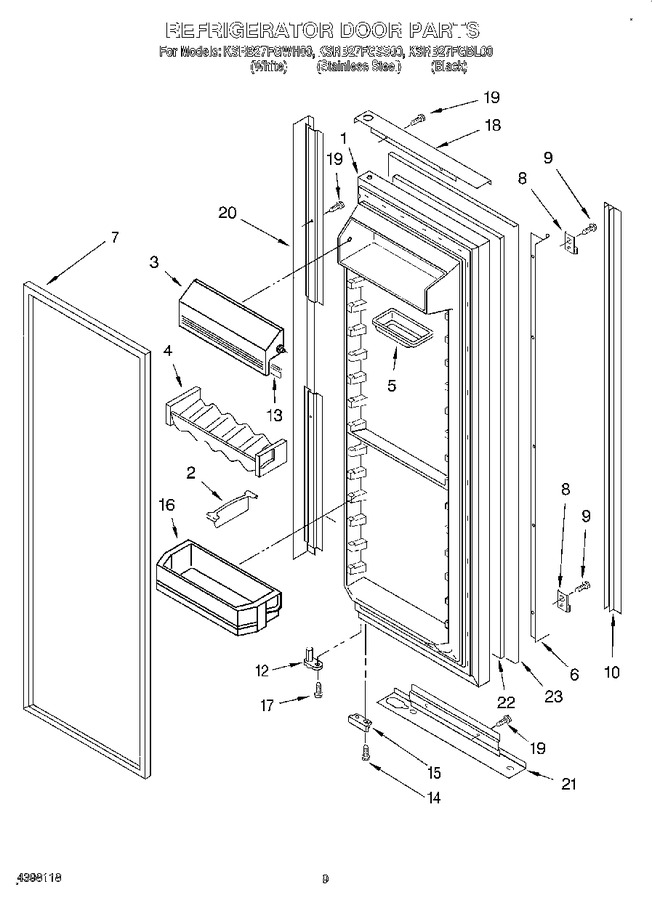

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2186674W		Refrigerator Door (includes No.7) (white)		Appelez-nous	-
1	2186674B		Refrigerator Door (includes No.7) (black)		Appelez-nous	-
2	2195497		Load Lock		Appelez-nous	-
3	2182399		Door, Compartment		Appelez-nous	-
4	2193409		Beverage Holder				$ 48.13
5	2165792		Tray, Butter		Appelez-nous	-
6	2200178B		Handle (black)		Appelez-nous	-
6	2200181S		Handle (stainless)		Appelez-nous	-
6	2200178W		Handle (white)		Appelez-nous	-
7	2159083		Door Gasket, Magnetic (service) (black)				$ 251.49
7	2159075		Door Gasket, Magnetic (service) (mist Beige)			Immediately	$ 333.00
8	2200416		Clip, Handle		Appelez-nous	-
9	WP489478		Screw   (Replaces: 489478)				$ 8.18
10	2186978W		Cover, Screw (white)		Appelez-nous	-
10	2186979S		Cover, Screw (stainless Steel)		Appelez-nous	-
10	2186978B		Cover, Screw (black)		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
13	2159124		Gasket		Appelez-nous	-
14	WP489483		Screw   (Replaces: 489420)				$ 11.41
15	2155331		Bracket, Door Stop		Appelez-nous	-
16	2171062		Shelf Bin (4)				$ 40.08
17	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
18	2186724B		Trim, Door (top) (black)		Appelez-nous	-
18	2186786S		Trim, Door (top) (stainless)		Appelez-nous	-
18	2186724W		Trim, Door (top) (white)		Appelez-nous	-
19	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
20	2186766S		Trim, Door (hinge Side) (stainless)		Appelez-nous	-
20	2186689W		Trim, Door (hinge Side) (white)		Appelez-nous	-
20	2186689B		Trim, Door (hinge Side) (black)		Appelez-nous	-
21	2186784S		Trim, Door (bottom) (stainless)		Appelez-nous	-
21	2186722B		Trim, Door (bottom) (black)		Appelez-nous	-
21	2186722W		Trim, Door (bottom) (white)		Appelez-nous	-
22	2186732		Filler, Panel		Appelez-nous	-
23	2186791S		Panel (stainless Steel)		Appelez-nous	-
23	2186729W		Panel (white)		Appelez-nous	-
23	2186729B		Panel (black)		Appelez-nous	-
