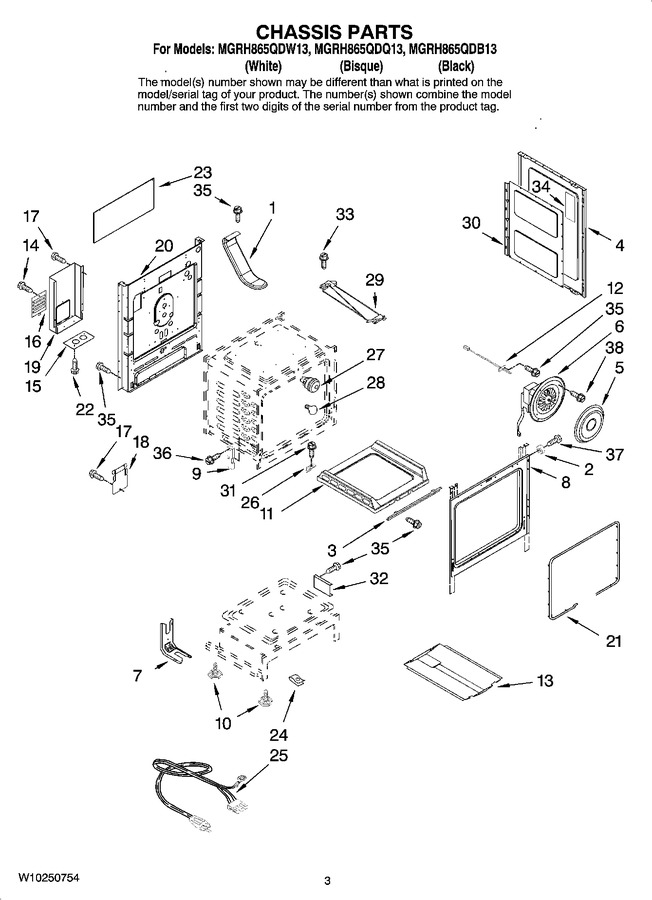

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Door Parts
06 - Drawer And Rack Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74008817 | Vent, Oven |
|
- | |||||
| 2 | 74008690 | Spacer, Side Panel |
|
$ 21.66 | |||||
| 3 | 3807P680-45 | Support, Oven Bottom |
|
$ 33.39 | |||||
| 4 | 74008708 | Panel, Side (2) (bisque) |
|
- | |||||
| 4 | 74008709 | Panel, Side (2) (white) |
|
- | |||||
| 4 | 74008710 | Panel, Side (2) (black) |
|
- | |||||
| 5 | 74005783 | Plate, Convection |
|
- | |||||
| 6 | 74011174 | Fan, Convection |
|
$ 152.59 | |||||
| 7 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 74005564) |
|
Immediately | $ 5.21 | ||||
| 9 | WP74010551 | Hinge, Receiver (Replaces: 74010551) |
|
Immediately | $ 14.00 | ||||
| 10 | W11665456 | Foot, Leveler (4) (Replaces: 74002373) |
|
Immediately | $ 28.11 | ||||
| 11 | WPW10211368 | Bottom, Oven (Replaces: 74008741) |
|
Immediately | $ 318.97 | ||||
| 12 | 12001655 | Sensor, Oven (Replaces: 74004944) |
|
Immediately | $ 45.57 | ||||
| 13 | W11775243 | Baffle, Burner (Replaces: 3601P356-45) |
|
$ 84.71 | |||||
| 14 | W11233072 | Screw (Replaces: 7101P338-60) |
|
Immediately | $ 14.02 | ||||
| 15 | 3605F146-51 | Plate, Conduit |
|
$ 6.06 | |||||
| 16 | 74008340 | Panel, Access |
|
- | |||||
| 17 | WP7101P434-60 | Screw (2) (Replaces: 71001394) |
|
$ 6.95 | |||||
| 18 | 74009653 | Cover, Broil |
|
- | |||||
| 19 | 31955101 | Cover, Lower Wire |
|
- | |||||
| 20 | 4002F347-51 | Back, Main |
|
- | |||||
| 21 | W11562931 | Seal, Oven (Replaces: W10162385) |
|
Immediately | $ 87.76 | ||||
| 22 | WP4159193 | Screw (Replaces: 7101P336-60) |
|
$ 4.77 | |||||
| 23 | 3604F372-51 | Shield, Vent Ext |
|
- | |||||
| 24 | 74008835 | Clip (4) |
|
$ 9.94 | |||||
| 25 | 74008876 | Cord, Power |
|
$ 8.90 | |||||
| 26 | 3801P822-45 | Bracket, Oven Bottom |
|
$ 5.27 | |||||
| 27 | WP74011278 | Light Assembly (Replaces: 74011278) |
|
$ 112.84 | |||||
| 28 | 8009 | Bulb, Oven Light (Replaces: 7407P103-60) |
|
Immediately | $ 18.67 | ||||
| 29 | W10792991 | Latch, Door Lock (Replaces: 8002P104-60) |
|
$ 339.59 | |||||
| 30 | 3804F316-51 | Retainer, Insulation |
|
- | |||||
| 31 | WP74003976 | Screw (2) (Replaces: 74003976) |
|
$ 7.19 | |||||
| 32 | 3801P798-51 | Bracket, Oven |
|
- | |||||
| 33 | 74003975 | Screw |
|
$ 13.36 | |||||
| 34 | 7002P494-60 | Insulation |
|
- | |||||
| 35 | W11233072 | Screw (Replaces: 74001530) |
|
Immediately | $ 14.02 | ||||
| 36 | WP4159193 | Screw (4) (Replaces: 7101P282-60) |
|
$ 4.77 | |||||
| 37 | 74008798 | Screw |
|
$ 12.03 | |||||
| 38 | 74005401 | Screw |
|
$ 5.33 | |||||
| NI | 74008700 | Insulation, Wrap |
|
$ 54.48 | |||||
| NI | 7002P492-60 | Insulation, Back |
|
$ 59.49 |
