Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10156248 Installation Instructions Appelez-nous -
1 W10129630 Owners Manual Appelez-nous -
2 WP3191898 Cap, Burner (lr)   (Replaces: W10154098) Special Order $ 71.00

2 WP74007415 Cap, Burner (rr & Lf)   (Replaces: 74007415) Special Order $ 101.91

2 W10154101 Cap, Burner (rf) Special Order $ 55.09

3 74008761 Spacer, Snap-in Special Order $ 8.81

4 WPW10406283 Burner (rr & Lf)   (Replaces: 74009900) Special Order $ 78.02

4 WPW10406878 Burner (rf)   (Replaces: 74007413) Special Order $ 107.48

4 WPW10406243 Burner (lr)   (Replaces: 74007411) In-Stock Immediately $ 39.08

5 74009114 Cooktop Appelez-nous -
6 74011112 Panel, Manifold Appelez-nous -
7 74009773 Knob, Control (4) Special Order $ 17.64

8 74009120 Grate, Burner (2) Special Order $ 278.52

9 WP3368921 Screw (8)   (Replaces: 7101P685-60) In-Stock Immediately $ 8.56

10 W11233072 Screw   (Replaces: 74001530) In-Stock Immediately $ 14.72


    View Diagram in Separate Window     Print Icon   Print Part List

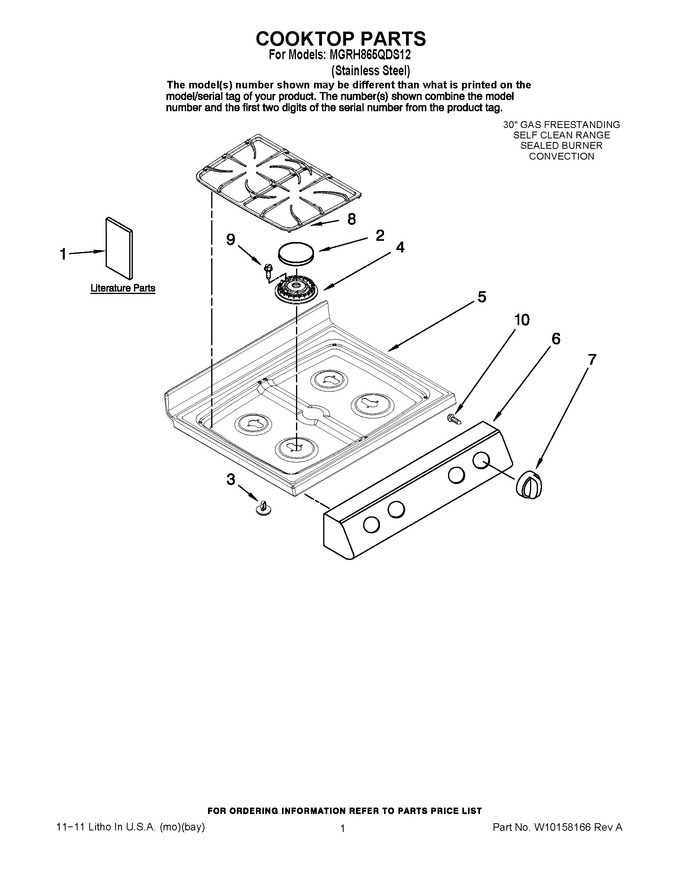

Diagram for MGRH865QDS12
