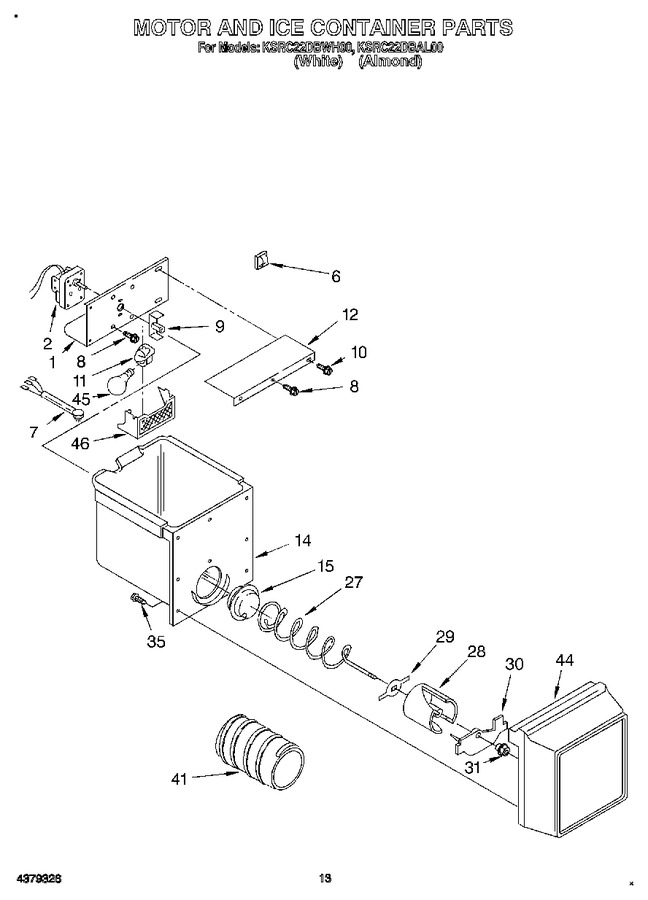

08 - Motor And Ice Container


09 - Freezer Liner


10 - Icemaker


11 - Air Flow


12 - Control, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10284487		Bracket, Motor   (Replaces: 1115208)				$ 114.10
2	2155262		Motor, Dispenser				$ 72.79
6	WP1115374		Clip, Wiring   (Replaces: 1115374)				$ 7.75
7	2149193		Wiring Assembly, Ice Dispenser		Appelez-nous	-
8	WP489399		Screw   (Replaces: 489399)				$ 6.95
9	WPW10169511		Coupling, Motor   (Replaces: 983663)				$ 23.34
10	WP489478		Screw   (Replaces: 489242)				$ 7.75
11	4387478		Socket, Light   (Replaces: 851067)			Immediately	$ 110.16
12	WPW10284487		Cover, Motor   (Replaces: 1115210)				$ 114.10
14	WP2196089		Ice Container   (Replaces: 2152703)				$ 209.75
15	W10749708		Coupling, Conveyor   (Replaces: 983668)				$ 26.13
27	1115214		Conveyor		Appelez-nous	-
28	4388736		Drum   (Replaces: 946193)				$ 92.35
29	4388736		Drive Bar   (Replaces: 946192)				$ 92.35
30	1115362		Floating Baffle		Appelez-nous	-
31	946195		Nut, Bearing		Appelez-nous	-
35	WP488787		Screw   (Replaces: 488886)				$ 10.58
41	4317870		Sleeve-auger   (Replaces: 2152021)				$ 129.54
44	2171264		Front Cover, Ice Container		Appelez-nous	-
45	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
46	983359		Light Lens, Dispenser		Appelez-nous	-
