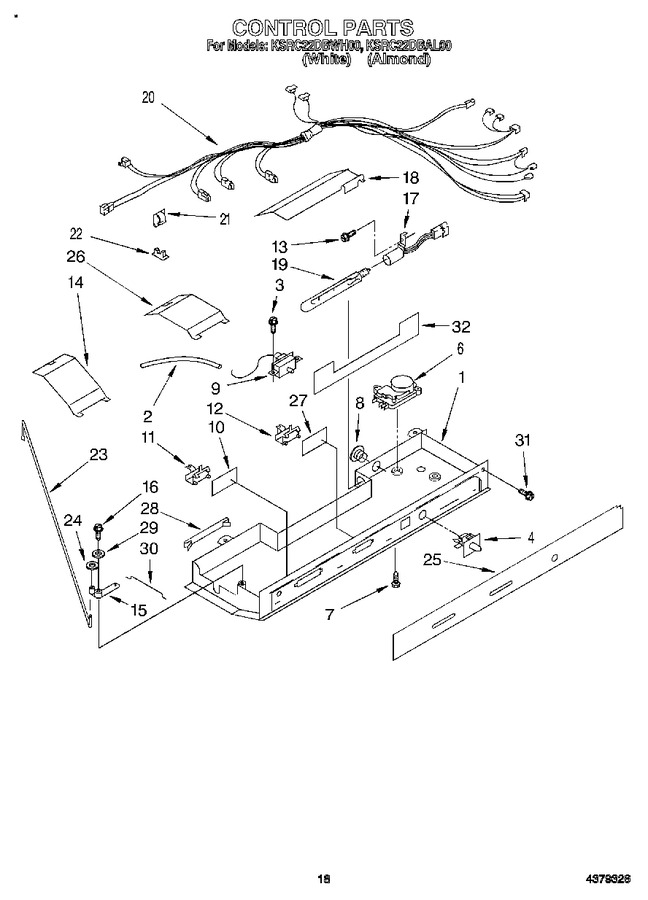

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2169149		Control Box		Appelez-nous	-
2	WP2196003		Tube Barrier, Thermostat   (Replaces: 1115241)				$ 7.95
3	2006254		Screw   (Replaces: 489214)				$ 13.13
4	WP2149705		Light Switch   (Replaces: 1123923)			Immediately	$ 40.40
6	W10822278		Defrost Timer   (Replaces: 2154984)			Immediately	$ 34.44
7	489392		Screw (2)   (Replaces: 489398)				$ 13.35
8	940014		Hole Plug				$ 18.33
9	WP2315562		Thermostat Assembly   (Replaces: 2161282)			Immediately	$ 106.18
10	1126028		Window		Appelez-nous	-
11	1125592		Slide, Air Control		Appelez-nous	-
12	1125591		Slide, Thermostat		Appelez-nous	-
13	WP489478		Screw   (Replaces: 489242)				$ 7.75
14	1118072		Light Bar		Appelez-nous	-
15	2161306		Arm, Pivot				$ 9.65
16	627068		Screw				$ 12.12
17	1110690		Light Socket		Appelez-nous	-
18	1118033		Heat Shield		Appelez-nous	-
19	WP548049		Light Bulb   (Replaces: 548049)				$ 86.35
20	2155694		Control Box Harness		Appelez-nous	-
21	WP1115374		Clip, Wiring   (Replaces: 1115374)				$ 7.75
22	1115375		Clip, Wiring				$ 11.15
23	2161308		Connecting Rod				$ 172.11
24	489391		Fastener, Push-on				$ 7.52
25	2155705		Escutcheon, Control Box		Appelez-nous	-
26	1126089		Light Bar		Appelez-nous	-
27	1126027		Window		Appelez-nous	-
28	1125811		Clip, Control Box		Appelez-nous	-
29	489203		Spring Washer		Appelez-nous	-
30	2161307		Connecting Rod (short)		Appelez-nous	-
31	WP489478		Screw (4)   (Replaces: 489242)				$ 7.75
32	WPW10312301		Ice Crusher Asm Refinishing Material   (Replaces: 2152735)				$ 430.90
32	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
32	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
32	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
32	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
32	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 231.56
32	876370		Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``)   (Replaces: 876305)				$ 231.56
32	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
32	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
32	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
32	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 51.44
32	1127141		Heat Shield		Appelez-nous	-
32	350942		Primer White (13 Oz. Spray Can)				$ 89.66
32	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
32	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
32	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
32	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
32	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
32	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 231.56
32	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
32	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
32	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
32	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
32	833938		Kit, Terminal Connector				$ 8.07
32	515393		Transformer (115-230 Volt)		Appelez-nous	-
32	WPW10312301		Ice Container Asm   (Replaces: 1126248)				$ 430.90
32	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
32	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
32	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
	LIT2168861		Energy Label		Appelez-nous	-
	1117510		Torx Key				$ 5.84
	LIT628370		Modular Icemaker Service Sheet		Appelez-nous	-
	LIT787808		Refrigerator		Appelez-nous	-
	LIT2161908		Use And Care Guide		Appelez-nous	-
	LIT2155215		Service & Wiring Sheet		Appelez-nous	-
