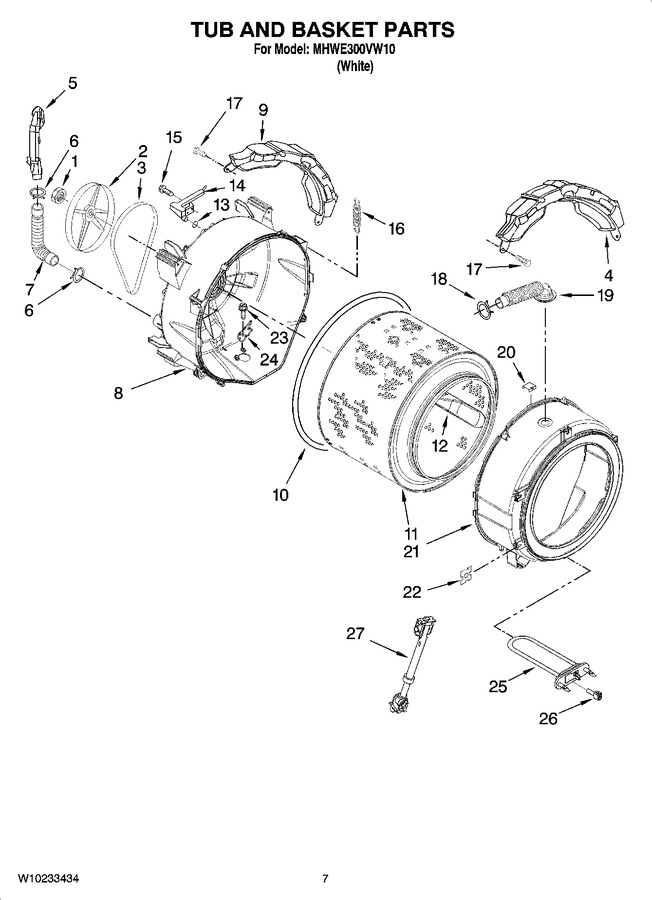

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10283361		Nut, Pulley   (Replaces: 8182132)			Immediately	$ 79.11
2	WP8182650		Pulley   (Replaces: 8182650)			Immediately	$ 187.69
3	WPW10388418		Belt   (Replaces: W10248068)			Immediately	$ 56.08
4	WPW10008880		Counterweight, Front (2)   (Replaces: 8181645)				$ 175.92
5	8181744		Pipe, Ventilation				$ 82.50
6	8540010		Clamp   (Replaces: W10208156)				$ 11.18
7	WP8181743		Hose, Exhaust   (Replaces: 8181743)				$ 108.37
8	W10772617		Tub, Rear (includes Items 10, 22, 23 & 24)   (Replaces: 8182284)				$ 669.38
9	8181913		Counterweight, Rear		Appelez-nous	-
10	W10772613		Gasket, Tub   (Replaces: 8181673)				$ 414.50
11	8182232		Basket		Appelez-nous	-
12	WP8182233		Baffle, Tub   (Replaces: 8182233)			Immediately	$ 69.18
13	WPW10250553		O-ring   (Replaces: 8181748)				$ 7.19
14	8181731		Airtrap				$ 29.07
15	8181785		Screw				$ 6.33
16	W10135004		Spring, Suspension   (Replaces: 8182814)			Immediately	$ 83.60
17	8181647		Bolt		Appelez-nous	-
18	WP3367052		Clamp, Hose   (Replaces: 8181742)				$ 8.32
19	WP8540015		Hose, Exhaust   (Replaces: 8183187)			Immediately	$ 41.85
20	WP8540092		Clamp, Tub   (Replaces: 8181667)				$ 7.59
21	W10772607		Tub, Front (includes Items 10 & 22)   (Replaces: 8182312)				$ 519.91
22	WP8182512		Nut, Push-in   (Replaces: 8182512)			Immediately	$ 6.95
23	W11230114		Screw   (Replaces: 8182214)				$ 13.28
24	W10250558		Clamp, Heating Element   (Replaces: 8181686)				$ 12.41
25	WPW10426377		Element, Heating   (Replaces: 8182666)				$ 303.81
26	WPW10467289		Ntc   (Replaces: 8181705)			Immediately	$ 47.80
27	W10822553		Shock Absorber   (Replaces: 8182812)			Immediately	$ 83.35
