SELECT A DIAGRAM

01 - Top And Cabinet Parts


02 - Door And Latch Parts


03 - Control Panel Parts


04 - Dispenser Parts


05 - Tub And Basket Parts

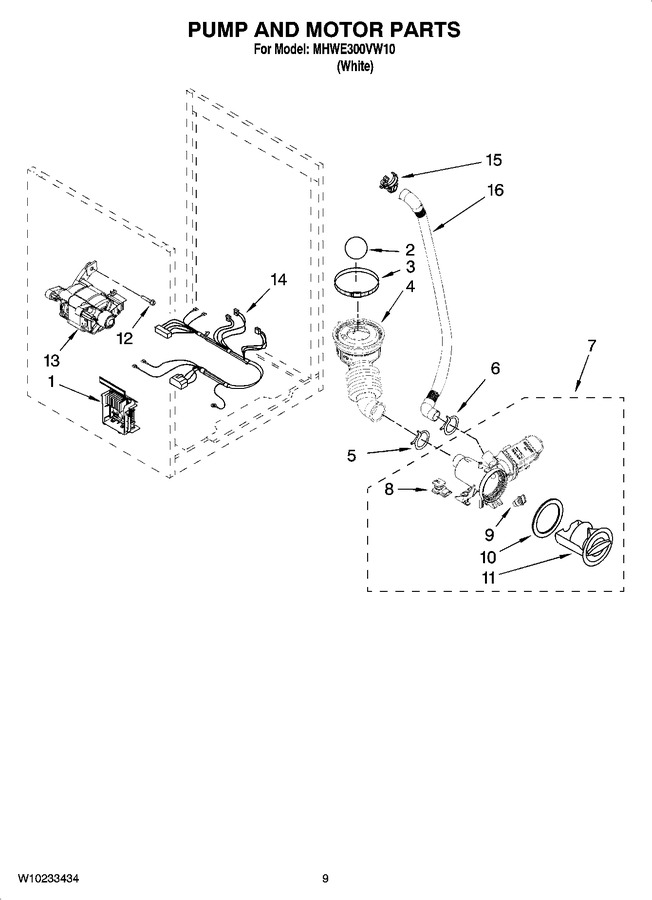

06 - Pump And Motor Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8183196		Motor Control Unit   (Replaces: 8183196)				$ 475.97
2	W10121657		Ball				$ 20.03
3	WP696392		Clamp   (Replaces: 8181734)				$ 8.12
4	WPW10467168		Hose, Tub To Pump   (Replaces: 8181732)			Immediately	$ 38.31
5	WP285655		Clamp   (Replaces: 8181753)			Immediately	$ 8.39
6	WP3367052		Clamp   (Replaces: 8181752)				$ 8.32
7	280187		Pump (complete)   (Replaces: 8182821)			Immediately	$ 233.93
8	8182820		Grommet, Damper (rear)		Appelez-nous	-
9	WPW10526202		Grommet, Damper (front)   (Replaces: 8182816)				$ 16.23
10	8181736		Seal, Filter Cap				$ 36.51
11	8183027		Cap, Filter				$ 28.31
12	W10128585		Bolt, Motor				$ 6.51
13	8182793		Motor				$ 323.53
14	WPW10189680		Harness, Motor (includes Item 23 On Page 1)   (Replaces: W10189680)				$ 167.01
15	8182209		Retainer, Drain Hose				$ 20.57
16	WPW10003250		Drain Hose (inner)   (Replaces: 8181740)			Immediately	$ 34.59
NI	W10135699		Affresh Oder Remover			Immediately	$ 20.92
NI	350938		Paint, Pressurized Spray (12 Oz.) (primer, Gray)		Appelez-nous	-
NI	350930		Paint, Pressurized Spray (12 Oz.) ( White)			Immediately	$ 38.21
NI	799344		Paint, Bulk (1 Qt.) (white (uncut))				$ 237.46
NI	285863		Drain Extension			Immediately	$ 32.43
NI	4396899		Rear Guard		Appelez-nous	-
NI	38005		Stack Kit				$ 45.05
NI	72017		Paint, Touch-up (1/2oz.) White			Immediately	$ 12.30

    View Diagram in Separate Window       Print Part List
