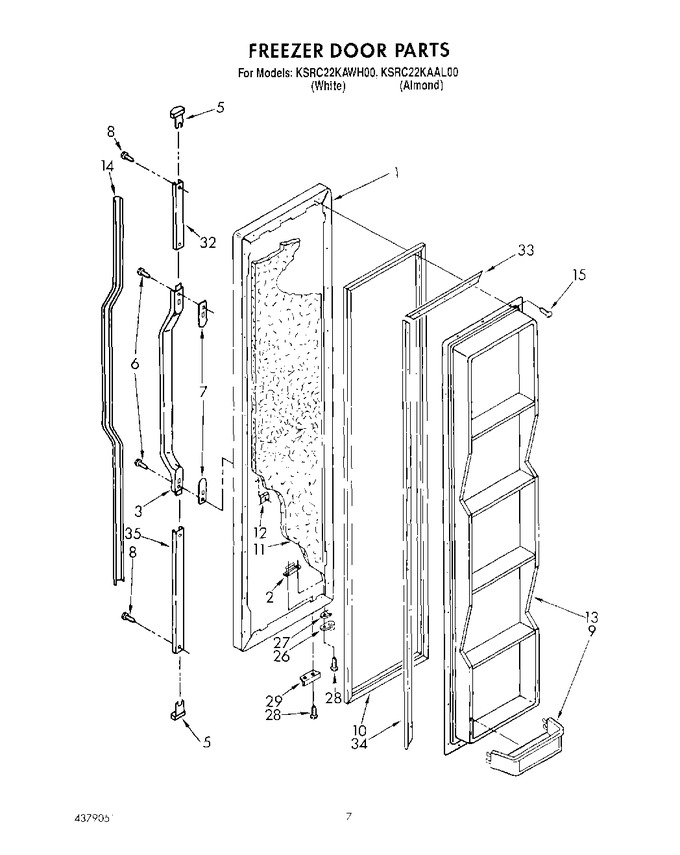

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1126341		Freezer, Door Panel (also Order Item 11) (almond)		Appelez-nous	-
1	1126278		Freezer, Door Panel (also Order Item 11) (white)		Appelez-nous	-
2	988402		Tap Plate		Appelez-nous	-
3	1107215		Handle Assembly		Appelez-nous	-
5	1107341		End Cap (2)		Appelez-nous	-
6	WP488729		Screw   (Replaces: 487909)			Immediately	$ 8.28
7	1107651		Spacer, Handle		Appelez-nous	-
8	489075		Screw		Appelez-nous	-
9	1117928		Shelf Bin (4)		Appelez-nous	-
10	2188405A		Door Gasket, Magnetic   (Replaces: 1125926)				$ 368.63
11	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
12	941242		Screw Anchor (2)		Appelez-nous	-
13	1129244		Panel, Interior Door		Appelez-nous	-
14	1117951		Insert, Handle (almond)		Appelez-nous	-
14	1117950		Insert, Handle (white)		Appelez-nous	-
15	WP489069		Screw   (Replaces: 489101)			Immediately	$ 8.40
26	4318165		Door Closer, Upper Cam   (Replaces: 986758)			Immediately	$ 29.74
26	WPW10329686		Door Closer (lower Cam)   (Replaces: 986759)			Immediately	$ 5.90
27	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 7.96
28	WP489399		Screw   (Replaces: 489375)				$ 7.30
29	988420		Bracket, Door Stop		Appelez-nous	-
32	1107241		Retainer, Insert		Appelez-nous	-
33	1117767		Gasket Retainer, Top & Bottom		Appelez-nous	-
34	1117766		Gasket Retainer, Side (2)				$ 36.55
35	1117953		Retainer, Insert		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
