SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Refrigerator Door


05 - Freezer Door


06 - Unit


07 - Freezer Liner


08 - Control

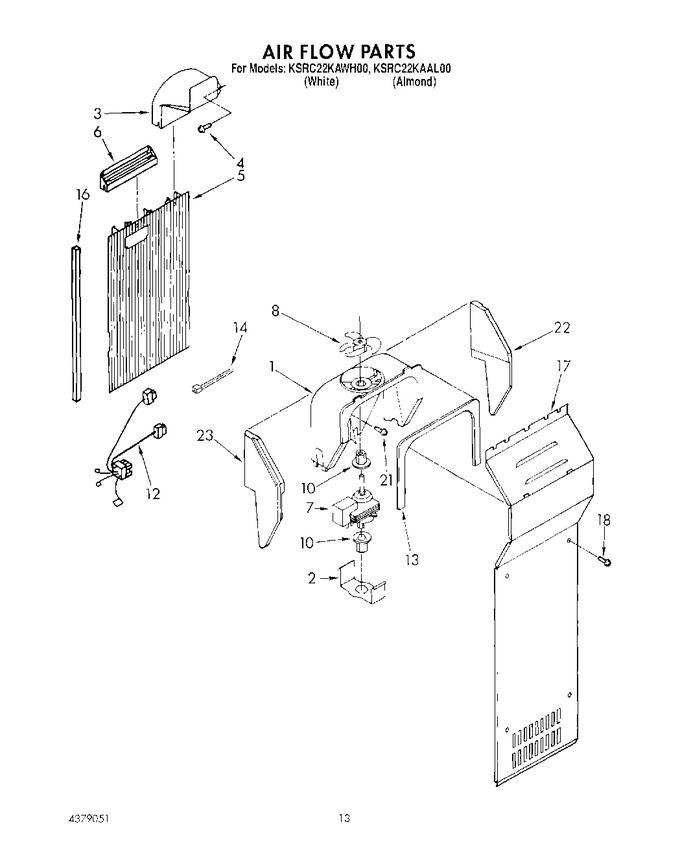

09 - Air Flow, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11254898		Fan Scroll   (Replaces: 2155593)			Immediately	$ 339.43
2	2155590		Retainer Fan Motor				$ 5.83
3	2161231		Air Scoop				$ 42.67
4	WP488729		Screw   (Replaces: 489176)			Immediately	$ 8.28
5	2155608		Air Duct Freezer		Appelez-nous	-
6	2149544		Diffuser, Air Duct				$ 52.53
7	4389144		Fan Motor   (Replaces: 2149299)			Immediately	$ 78.61
8	WP2169142		Fan Blade   (Replaces: 2154800)			Immediately	$ 43.41
10	2155589		Grommet, Fan (2)		Appelez-nous	-
12	2161327		Harness, Fan Evaporator, And Heater, Bi-metal		Appelez-nous	-
13	WP2155789		Gasket Cover   (Replaces: 2155788)				$ 8.18
14	WPW10339879		Wire Tie   (Replaces: 2155774)				$ 8.30
16	WP2304241		Gasket   (Replaces: 2155783)			Immediately	$ 86.94
17	2155611		Cover, Evaporator		Appelez-nous	-
18	W11233072		Screw   (Replaces: 489355)			Immediately	$ 14.72
21	WP489478		Screw   (Replaces: 489242)				$ 8.18
22	4388358		Support, R.s.   (Replaces: 2155765)				$ 32.72
23	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
23	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
23	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
23	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
23	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
23	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
23	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
23	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
23	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
23	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
23	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
23	876370		Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
23	4388358		Support, L.s.   (Replaces: 2155766)				$ 32.72
23	350942		Primer White (13 Oz. Spray Can)				$ 94.14
23	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
23	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
23	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
23	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
23	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
23	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
23	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
23	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
23	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
23	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
23	833938		Kit, Terminal Connector				$ 8.47
23	515393		Transformer (115-230 Volt)		Appelez-nous	-
23	WPW10312301		Ice Container Asm   (Replaces: 1126248)				$ 430.90
23	WPW10312301		Ice Crusher Asm   (Replaces: 2152735)				$ 430.90
23	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
	1117510		Torx Key				$ 5.84
	1129316		Kims8   (Replaces: 2155185)			Immediately	$ 149.11
	LIT2168632		Energy Label		Appelez-nous	-
	LIT2155213		Service & Wiring Sheet		Appelez-nous	-
	LIT2161911		Use And Care Guide		Appelez-nous	-
	LIT787808		Refrigerator		Appelez-nous	-
