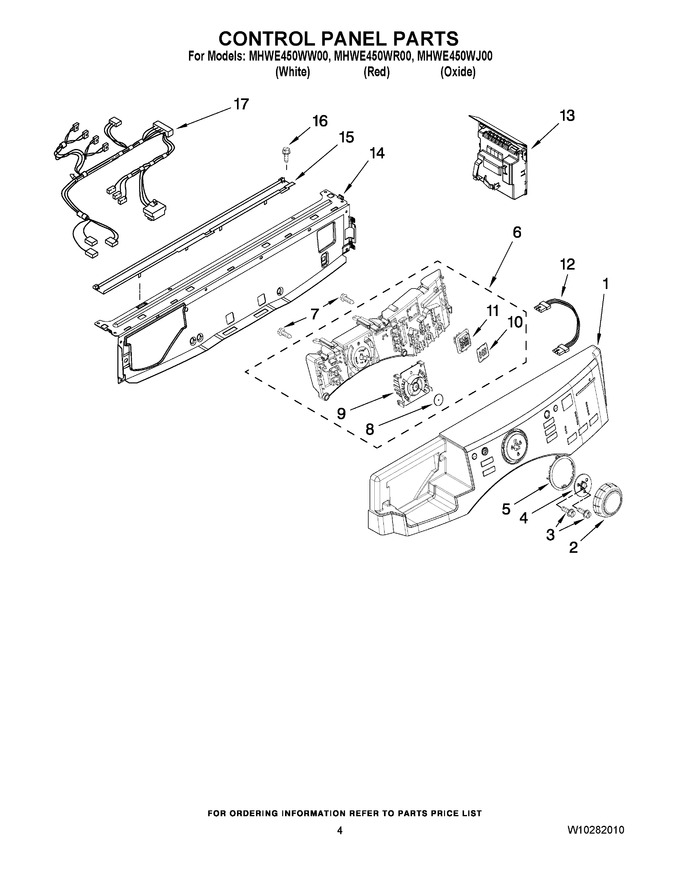

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10283496		Panel-control (white)				$ 250.60
1	W10283497		Panel-control (red)				$ 0.01
1	W10283499		Panel-control (oxide)		Appelez-nous	-
2	W10248116		Knob, Control (includes Item 5)		Appelez-nous	-
3	W11230114		Screw   (Replaces: 8181758)				$ 13.28
4	W10248117		Bushing, Knob		Appelez-nous	-
5	W10248122		Light Guide, Cycle				$ 12.83
6	W10283493		User Interface				$ 345.54
7	WP8540282		Screw   (Replaces: 8181661)				$ 11.56
8	W10248120		Seal, User Interface		Appelez-nous	-
9	W10248121		Light Guide- Cycle, Internal				$ 12.06
10	W10248118		Foil-display		Appelez-nous	-
11	W10248119		Light Guide- Display		Appelez-nous	-
12	W10852624		Harness, Wiring (user Interface)   (Replaces: W10283465)				$ 170.98
13	W10283511		Microcomputer, Machine Control				$ 300.94
14	W10059240		Brace, Front Top   (Replaces: 8183203)				$ 194.85
15	WP8183204		Channel, Water   (Replaces: 8183204)				$ 171.96
16	WP488729		Screw   (Replaces: 8181756)			Immediately	$ 7.79
17	W10283495		Harness, Wiring (upper Main)				$ 174.86
