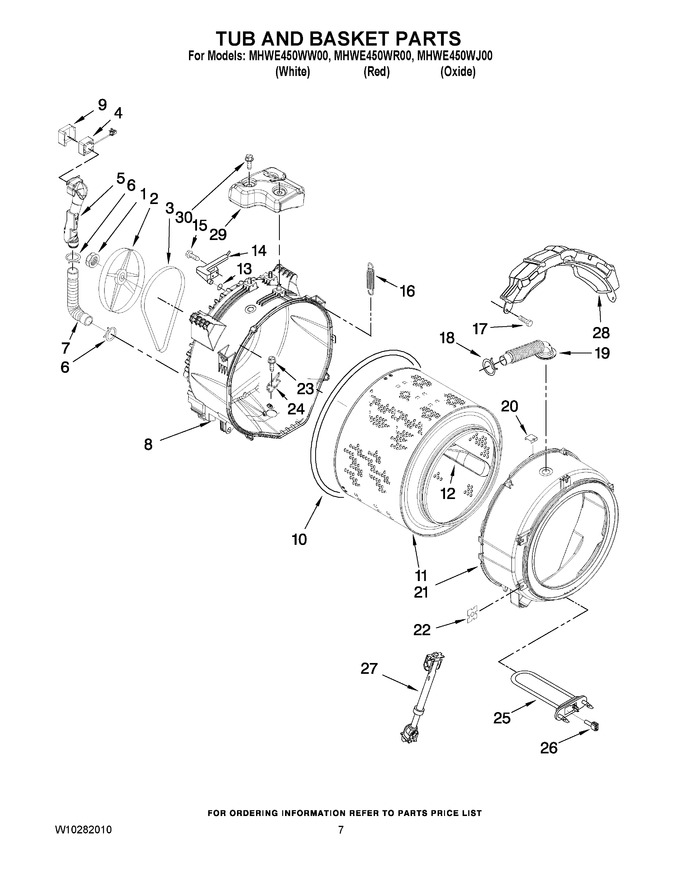

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10283361 | Nut, Pulley (Replaces: W10283361) |
|
Immediately | $ 79.11 | ||||
| 2 | WP8182650 | Pulley (Replaces: 8182650) |
|
Immediately | $ 187.69 | ||||
| 3 | WPW10388418 | Belt (Replaces: W10248068) |
|
Immediately | $ 56.08 | ||||
| 4 | WPW10283362 | Fan, Active Ventilation (Replaces: W10283362) |
|
$ 299.54 | |||||
| 5 | W10283513 | Pipe, Ventilation |
|
$ 45.81 | |||||
| 6 | 8540010 | Clamp (Replaces: W10208156) |
|
$ 11.18 | |||||
| 7 | WP8181743 | Hose, Exhaust (Replaces: 8181743) |
|
$ 108.37 | |||||
| 8 | W10283358 | Tub, Rear (includes Items 10, 22, 23 & 24) |
|
- | |||||
| 9 | W10283366 | Support, Ventilation Fan |
|
- | |||||
| 10 | W10772613 | Gasket, Tub (Replaces: 8181673) |
|
$ 414.50 | |||||
| 11 | W10283352 | Basket |
|
$ 483.13 | |||||
| 12 | WPW10283356 | Baffle, Tub (Replaces: W10283356) |
|
Immediately | $ 70.99 | ||||
| 13 | WPW10250553 | O-ring (Replaces: W10250553) |
|
$ 7.19 | |||||
| 14 | 8181731 | Airtrap |
|
$ 29.07 | |||||
| 15 | 8181785 | Screw |
|
$ 6.33 | |||||
| 16 | W10135004 | Spring, Suspension (Replaces: 8182814) |
|
Immediately | $ 83.60 | ||||
| 17 | 8181647 | Bolt |
|
- | |||||
| 18 | WP3367052 | Clamp, Hose (Replaces: 8181742) |
|
$ 8.32 | |||||
| 19 | WP8540015 | Hose, Exhaust (Replaces: 8183187) |
|
Immediately | $ 41.85 | ||||
| 20 | WP8540092 | Clamp, Tub (Replaces: 8181667) |
|
$ 7.59 | |||||
| 21 | W10772607 | Tub, Front (includes Items 10 & 22) (Replaces: 8182312) |
|
$ 519.91 | |||||
| 22 | WP8182512 | Nut, Push-in (Replaces: 8182512) |
|
Immediately | $ 6.95 | ||||
| 23 | W11230114 | Screw (Replaces: 8182214) |
|
$ 13.28 | |||||
| 24 | WPW10250572 | Bracket, Heater Support (Replaces: W10250572) |
|
Immediately | $ 106.31 | ||||
| 25 | WPW10426377 | Element, Heating (Replaces: 8182666) |
|
$ 303.81 | |||||
| 26 | WPW10467289 | Ntc (Replaces: 8181705) |
|
Immediately | $ 47.80 | ||||
| 27 | W10822553 | Shock Absorber (4) (Replaces: 8182812) |
|
Immediately | $ 83.35 | ||||
| 28 | WPW10008880 | Counterweight, Front (Replaces: 8181645) |
|
$ 175.92 | |||||
| 29 | W10283355 | Counterweight, Rear |
|
- | |||||
| 30 | W10283359 | Screw, Rear Counterweight |
|
- |
