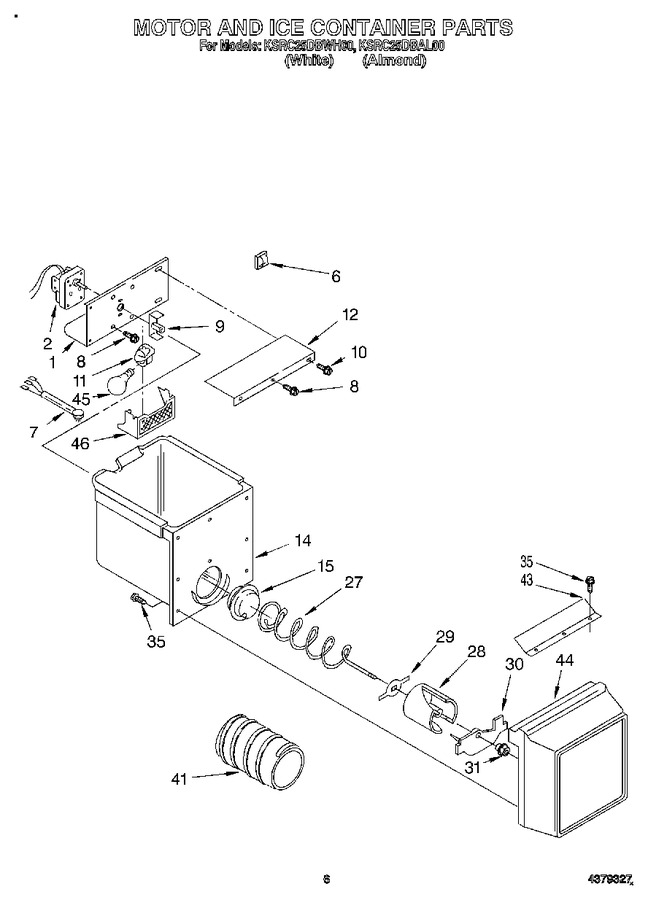

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1115337		Bracket, Motor		Appelez-nous	-
2	2155262		Motor, Dispenser				$ 72.79
6	WP1115374		Clip, Wiring   (Replaces: 1115374)				$ 8.14
7	2149193		Wiring Assembly, Ice Dispenser		Appelez-nous	-
8	WP489399		Screw   (Replaces: 489399)				$ 7.30
9	WPW10169511		Coupling, Motor   (Replaces: 983663)				$ 24.51
10	WP489478		Screw   (Replaces: 489242)				$ 8.18
11	4387478		Socket, Light   (Replaces: 851067)			Immediately	$ 115.67
12	1115339		Cover, Motor		Appelez-nous	-
14	WPW10670845		Ice Container   (Replaces: 2152701)				$ 199.19
15	W10749708		Coupling, Conveyor   (Replaces: 983668)				$ 27.44
27	1115214		Conveyor		Appelez-nous	-
28	4388736		Drum   (Replaces: 946193)				$ 96.97
29	4388736		Drive Bar   (Replaces: 946192)				$ 96.97
30	1115362		Floating Baffle		Appelez-nous	-
31	946195		Nut, Bearing		Appelez-nous	-
35	WP488787		Screw   (Replaces: 488886)				$ 11.26
41	4317870		Sleeve-auger   (Replaces: 2152021)				$ 136.02
43	1119043		Ice Deflector		Appelez-nous	-
44	1126296		Front Cover, Ice Container		Appelez-nous	-
45	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
46	983359		Light Lens, Dispenser		Appelez-nous	-
