SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container

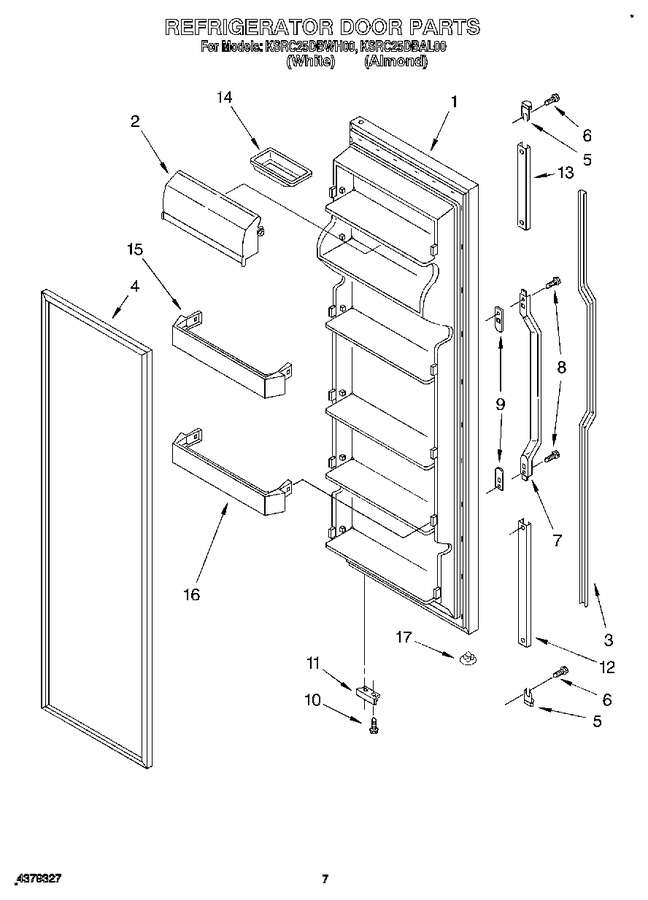

06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Icemaker


11 - Air Flow


12 - Control, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2157778		Refrigerator Door (includes No.4) (white)		Appelez-nous	-
1	2157779		Refrigerator Door (includes No.4) (almond)		Appelez-nous	-
2	2159136		Door, Compartment		Appelez-nous	-
3	1117948		Insert, Handle (white)		Appelez-nous	-
3	1117949		Insert, Handle (almond)		Appelez-nous	-
4	2159075		Door Gasket, Magnetic (service)   (Replaces: 2159079)			Immediately	$ 333.00
5	1107341		End Cap, Handle		Appelez-nous	-
6	489075		Screw		Appelez-nous	-
7	1107215		Handle Assembly		Appelez-nous	-
8	WP488729		Screw   (Replaces: 487909)			Immediately	$ 8.28
9	1107651		Spacer, Handle		Appelez-nous	-
10	WP999367		Screw   (Replaces: 489367)				$ 8.56
11	2155332		Bracket, Door Stop		Appelez-nous	-
12	1117952		Retainer, Insert (bottom)		Appelez-nous	-
13	1107243		Retainer, Insert		Appelez-nous	-
14	1125936		Butter, Tray		Appelez-nous	-
15	2156014		Shelf Bin (2)		Appelez-nous	-
16	2156015		Shelf Bin (3)		Appelez-nous	-
17	4318417		Black Grille Kit		Appelez-nous	-
17	2151653		Hole Plug		Appelez-nous	-
17	4318336		Trim Kit Acrylic Panel Kit		Appelez-nous	-
17	4210348		Trim Kit Panels (black)		Appelez-nous	-
17	4211148		White		Appelez-nous	-
17	4211147		Almond Handle Inserts		Appelez-nous	-
17	4318339		Handle Inserts (black)		Appelez-nous	-
17	4318340		Woodgrain		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
