SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Air Flow


06 - Motor And Ice Container


07 - Control


08 - Refrigerator Door


09 - Freezer Door


10 - Dispenser Front


11 - Unit


12 - Icemaker, Lit\optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

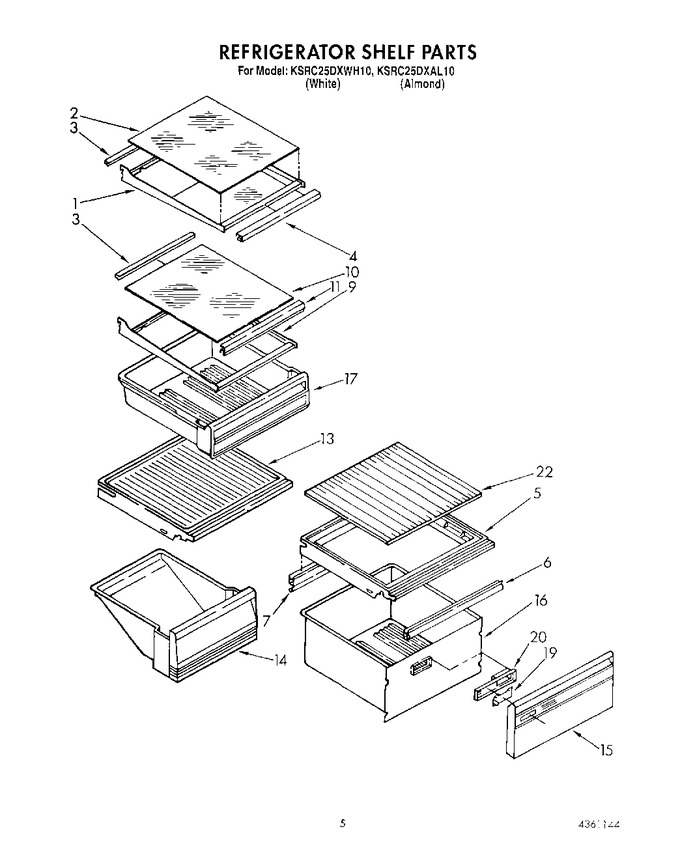

1	1125597		Shelf Assembly, Cantilever (3)		Appelez-nous	-
2	1125593		Glass, Shelf		Appelez-nous	-
3	1125594		Retainer, Glass		Appelez-nous	-
4	1125786		Gasket, Front		Appelez-nous	-
5	WP1126289		Pan Cover Assembly (2)   (Replaces: 1126289)				$ 190.80
6	1115291		Gasket, Cover (front)		Appelez-nous	-
7	1115293		Gasket, Cover (rear)		Appelez-nous	-
9	1126272		Pan Shelf & Slide Assembly		Appelez-nous	-
10	1126279		Glass, Shelf		Appelez-nous	-
11	1126281		Gasket (front)		Appelez-nous	-
13	WP2148298		Cover, Meat Pan   (Replaces: 1126323)				$ 183.32
14	1126288		Meat Pan		Appelez-nous	-
15	1126290		Front, Crisper		Appelez-nous	-
16	WP2148279		Crisper Pan (1)   (Replaces: 1114682)				$ 144.08
17	1126274		Utility Bin		Appelez-nous	-
19	1124819		Slide, Humidity		Appelez-nous	-
20	1124820		Housing, Control		Appelez-nous	-
22	1126293		Glasscover		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
