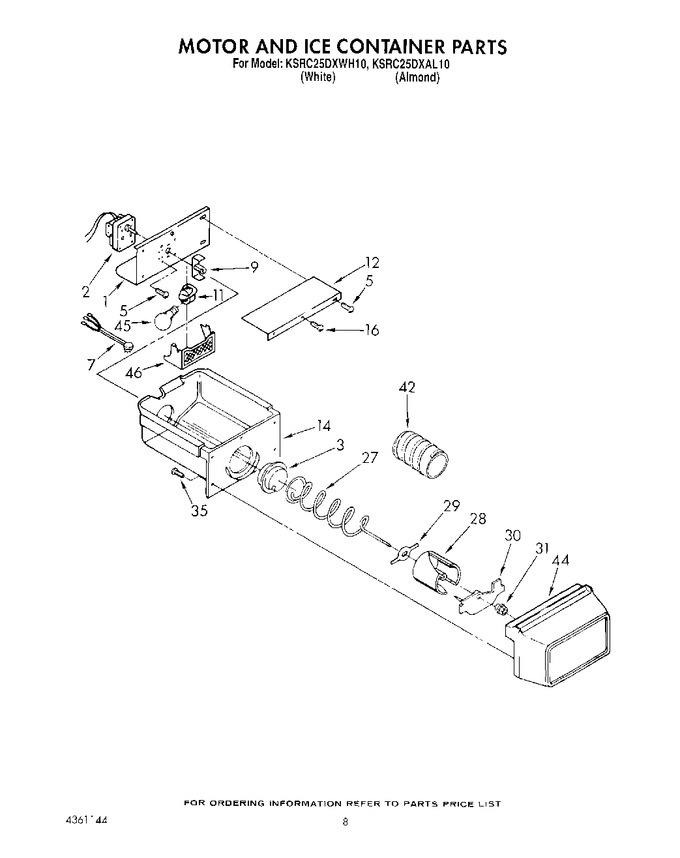

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1115337		Bracket, Motor		Appelez-nous	-
2	851152		Motor, Dispenser		Appelez-nous	-
3	W10749708		Coupling   (Replaces: 983668)				$ 27.44
5	00487294		Screw (2)   (Replaces: 487294)				$ 175.09
7	2149942		Wiring Assembly, Ice Dispenser		Appelez-nous	-
9	WPW10169511		Coupling, Motor   (Replaces: 983663)				$ 24.51
11	4387478		Socket, Light   (Replaces: 851067)			Immediately	$ 115.67
12	1115339		Cover, Motor		Appelez-nous	-
14	WPW10670845		Ice Container   (Replaces: 2152701)				$ 199.19
16	WP489478		Screw   (Replaces: 489242)				$ 8.18
27	1115214		Conveyor		Appelez-nous	-
28	4388736		Drum   (Replaces: 946193)				$ 96.97
29	4388736		Drive Bar   (Replaces: 946192)				$ 96.97
30	1115362		Floating Baffle		Appelez-nous	-
31	946195		Nut, Bearing		Appelez-nous	-
35	WP488787		Screw, (8-18 X 1/2)   (Replaces: 488886)				$ 11.26
42	4317870		Sleeve-auger   (Replaces: 2152021)				$ 136.02
44	1126296		Front Cover, Ice Container		Appelez-nous	-
45	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
46	983359		Light Lens, Dispenser		Appelez-nous	-
