View Diagram in Separate Window
Print Part List

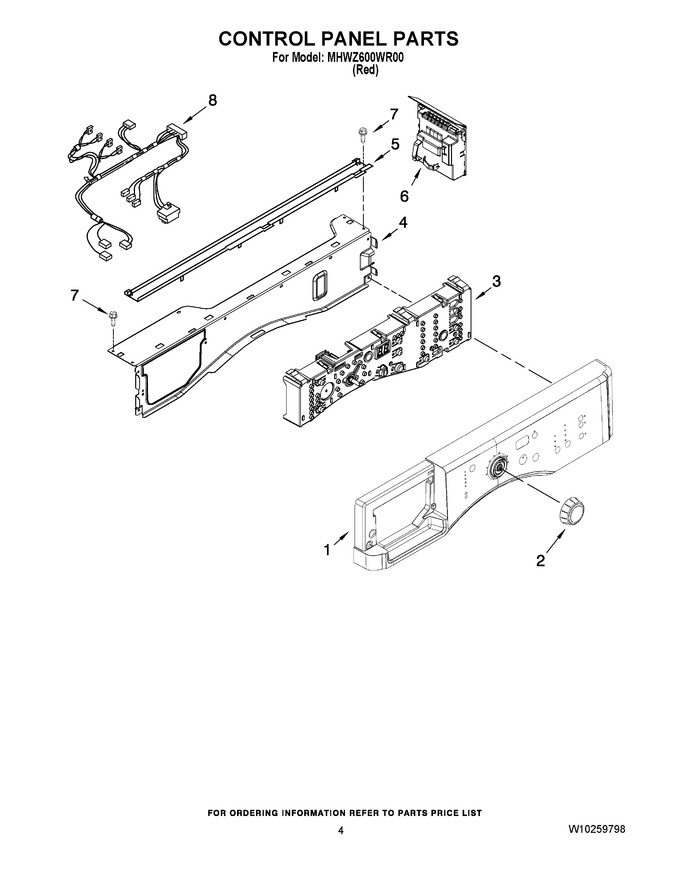

SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10295463 | Panel, Control (Replaces: W10259100) |
|
$ 341.76 | |||||
| 2 | WPW10119050 | Knob, Control (Replaces: W10119050) |
|
$ 53.67 | |||||
| 3 | W10117419 | User Interface |
|
$ 262.26 | |||||
| 4 | W10846488 | Brace, Top Front (Replaces: W10161692) |
|
$ 85.04 | |||||
| 5 | 8540722 | Channel, Water |
|
$ 33.36 | |||||
| 6 | WPW10525358 | Microcomputer, Machine Control (Replaces: W10246303) |
|
$ 327.06 | |||||
| 7 | WP489442 | Screw, 8-18 X 5/8 (Replaces: W10015090) |
|
Immediately | $ 10.94 | ||||
| 8 | W10201876 | Harness, Wiring (upper Main) (includes Items 37 & 39 On Page 1) |
|
$ 257.79 |
