Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10283361 Nut, Pulley   (Replaces: 8533999) In-Stock Immediately $ 83.07

2 WP8540088C Pulley   (Replaces: 8540088C) Special Order $ 206.14

3 WPW10388418 Belt, Drive   (Replaces: W10116215) In-Stock Immediately $ 56.08

4 W10200297 Counterweight, Front Lower   (Replaces: W10151304) Special Order $ 353.59

5 W10112169 Pipe, Ventilation Special Order $ 187.87

6 8540010 Clamp, Vent Hose Special Order $ 11.74

7 W11398765 Hose, Exhaust   (Replaces: 8540019) Special Order $ 31.69

8 W10274605 Tub, Rear (includes Items 10 & 22)   (Replaces: W10245531) Special Order $ 450.05

9 W10132097 Counterweight, Rear Special Order $ 71.27

10 WPW10111158 Gasket, Tub   (Replaces: 8540090) In-Stock Immediately $ 104.09

11 WPW10112984 Basket, Complete   (Replaces: W10112984) Special Order $ 649.57

12 WPW10112972 Baffle, Tub   (Replaces: W10112972) In-Stock Immediately $ 99.92

13 WPW10426377 Element, Heating   (Replaces: W10155115) Special Order $ 319.00

14 W10174473 Bolt Assembly, Counterweight Center Hole Appelez-nous -
15 W10151303 Counterweight, Front Upper Appelez-nous -
16 280159 Spring, Suspension   (Replaces: W10010360) Special Order $ 112.10

17 W11685857 Bolt, Counterweight Mtg.   (Replaces: W10094780) Special Order $ 14.81

18 3363365 Clamp, Hose Special Order $ 11.29

19 WP8540015 Hose, Exhaust   (Replaces: 8540015) In-Stock Immediately $ 43.94

20 WP8540092 Clamp, Tube   (Replaces: 8540092) Special Order $ 7.97

21 280255 Tub, Front (includes Items 10, 22 27 & 28)   (Replaces: W10245532) In-Stock Immediately $ 446.16

22 WP8182512 Nut, Push-in   (Replaces: 8540072) In-Stock Immediately $ 7.30

23 WPW10163171 Shock Absorber (4)   (Replaces: W10159465) In-Stock Immediately $ 120.09

24 WPW10467289 Negative Thermistor Control   (Replaces: 8540226) In-Stock Immediately $ 47.80

25 WP8540382 Screw   (Replaces: 8540382) Special Order $ 7.30

26 8540342 Crosspiece Assembly Appelez-nous -
27 8540322 Bracket, Heating Element Appelez-nous -
28 W11230114 Screw   (Replaces: 8540880) Special Order $ 13.94

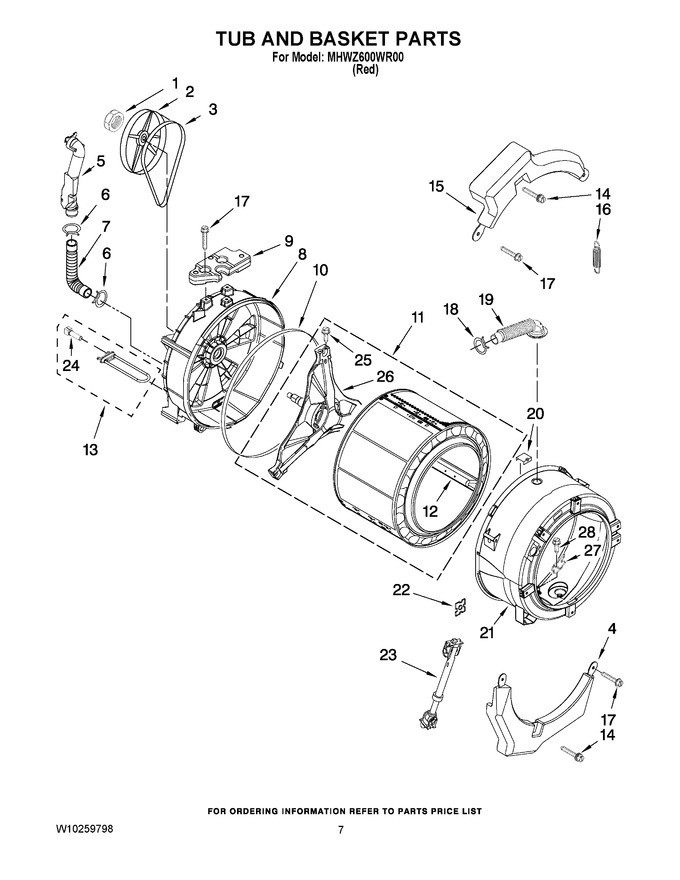

    View Diagram in Separate Window     Print Icon   Print Part List
