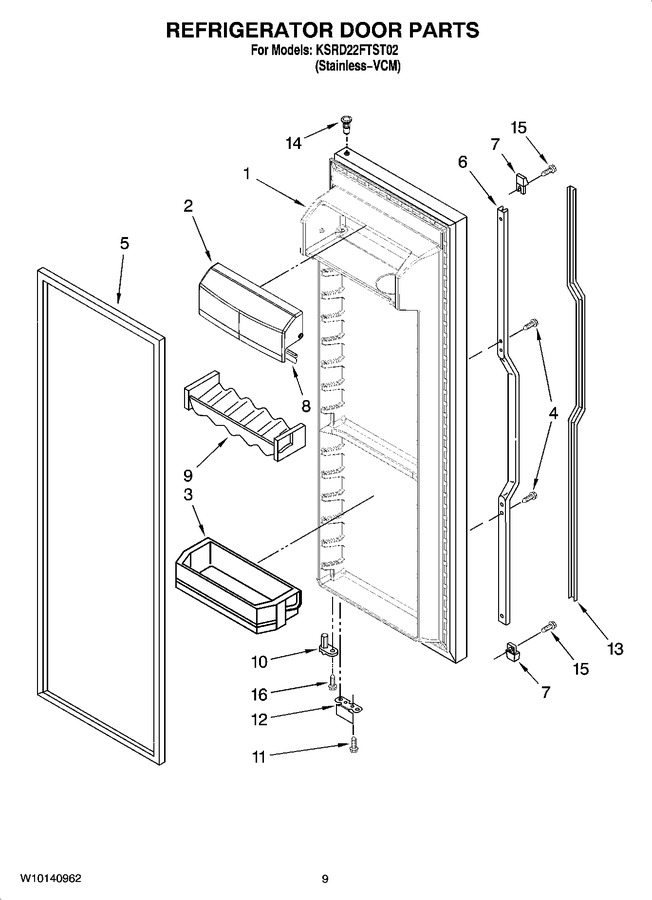

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2207330LG		Refrigerator Door (includes 5) (stainless-vcm)		Appelez-nous	-
2	2218119		Door, Compartment (includes 8)		Appelez-nous	-
3	2171063K		Shelf Bin (4)				$ 41.12
4	WP489491		Screw   (Replaces: 489491)				$ 7.30
5	2159081		Door, Gasket (black Magnetic)   (Replaces: 2221311)				$ 335.58
6	2173832		Insert, Handle (black)		Appelez-nous	-
7	2194778B		End Cap (black)		Appelez-nous	-
8	2159124		Gasket		Appelez-nous	-
9	2193409K		Beverage Holder		Appelez-nous	-
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
11	WP489483		Screw   (Replaces: 489420)				$ 11.41
12	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 42.79
13	2194776B		Retainer, Insert (black)		Appelez-nous	-
14	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 8.15
15	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
16	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
