01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts (not Included)

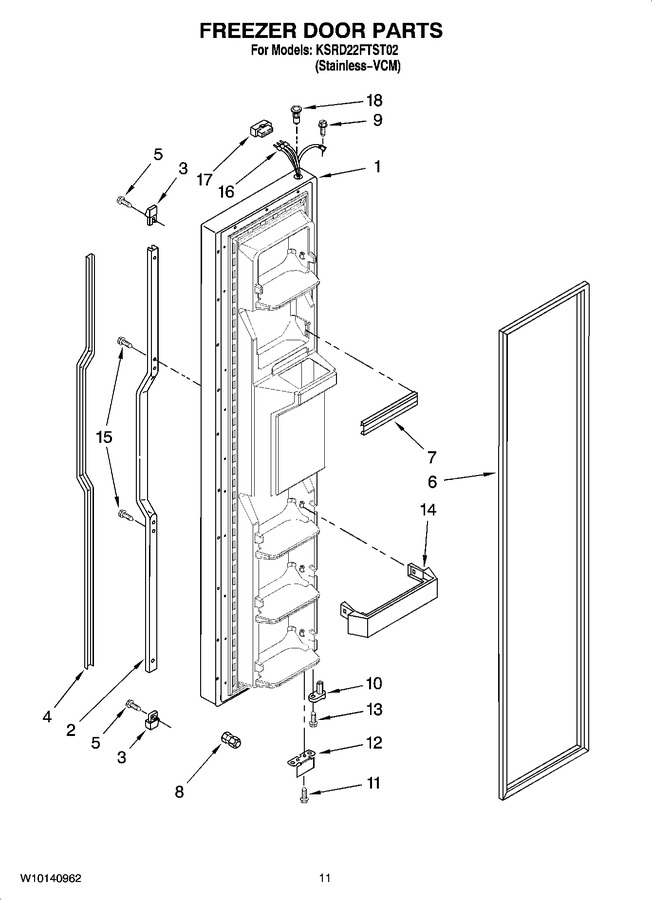

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2216262LG		Freezer Door (includes Item 6 And Dispenser Front Parts) (stainless-vcm)		Appelez-nous	-
2	2173832		Insert, Handle (black)		Appelez-nous	-
3	2194778B		End Cap (black)		Appelez-nous	-
4	2194776B		Retainer, Insert (black)		Appelez-nous	-
5	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
6	2159080		Door Gasket, Magnetic (black)   (Replaces: 2221312)				$ 325.91
7	WPW10307490		Trim, Door Shelf   (Replaces: 2209680)			Immediately	$ 24.27
8	WP4373559		Connector, Dispenser Tube   (Replaces: 2209709)				$ 81.22
9	WP489128		Screw   (Replaces: 8281149)				$ 11.40
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
11	WP489483		Screw   (Replaces: 489420)				$ 11.41
12	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 42.79
13	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
14	2171071K		Shelf Bin (4)		Appelez-nous	-
15	WP489491		Screw   (Replaces: 489491)				$ 7.30
16	2187324		Wire Assembly		Appelez-nous	-
17	WP2154473		Connector   (Replaces: 2154473)				$ 24.83
18	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 8.15
