SELECT A DIAGRAM

01 - 8 Cube Compact Ice Maker


02 - Cabinet Back


03 - Drain And Rollers


04 - Evap And Air Handling


05 - Fz Door


06 - Fz Door


07 - Fz Shelving And Ref Light


08 - Ice And Water Cavity


09 - Ice Bucket And Ice Maker


10 - Machine Compartment


11 - Ref Door


12 - Ref Door

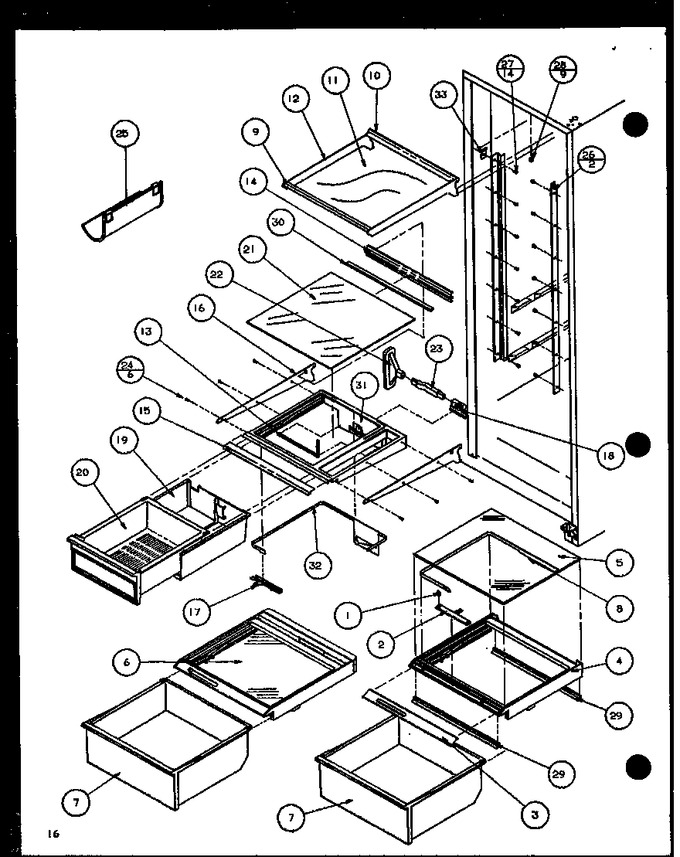

13 - Ref Shelving And Drawers


14 - Ref/fz Controls And Cabinet Part


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10038401		Knob, Crisper Control		Appelez-nous	-
2	YD7860605		Slide, Crisper		Appelez-nous	-
3	D7616654		Trim, Crisper Front		Appelez-nous	-
4	D7853207		Frame,crisper		Appelez-nous	-
4	D7853205		Frame Crisper		Appelez-nous	-
5	D7421275		Glass Crisper Top		Appelez-nous	-
6	10036030		Glass Top Crisper		Appelez-nous	-
7	D7782119		Pan Crisper		Appelez-nous	-
8	D7859603		Band Crisper Control		Appelez-nous	-
9	10049916		Trim		Appelez-nous	-
10	C8913606		Trim, Glass Shelf Rear		Appelez-nous	-
11	10036025		Glass Shelf		Appelez-nous	-
12	D7871009		Frame-cantilever Shelf		Appelez-nous	-
13	A3263905		Gasket-per Ft		Appelez-nous	-
14	C8990404		Trim-m.k., Top, Rear		Appelez-nous	-
15	10049914		Trim		Appelez-nous	-
16	D7862924		Blank Side Rail		Appelez-nous	-
16	D7862925		Blank Side Rail (silver)		Appelez-nous	-
17	D7859401		Slide-mk Control		Appelez-nous	-
18	D7869102		Ext. Air Duct		Appelez-nous	-
19	D7698113		Sleeve M.k.		Appelez-nous	-
20	D7698329		Pan-meat		Appelez-nous	-
21	10036028		Glass Shelf M.k.		Appelez-nous	-
22	D7873601		Grommet, Mk		Appelez-nous	-
23	D7869001		Xduct M.k. Air		Appelez-nous	-
24	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
25	D7547614		Rack, Bottle		Appelez-nous	-
26	D7789807		Ladder Cantilever		Appelez-nous	-
27	67006425		Screw-sm No.8-1/2lg   (Replaces: M0211017)			Immediately	$ 6.95
28	M0580007		Grommet, Screw		Appelez-nous	-
29	D7718403		Seal, Crisper Front		Appelez-nous	-
29	D7718404		Seal, Crisper Rear		Appelez-nous	-
30	10043102		Ext. Rear Glass		Appelez-nous	-
31	D7857002		Frame, M.k.		Appelez-nous	-
32	D7859503		Band M.k. Control		Appelez-nous	-
33	C8992301		Bracket		Appelez-nous	-
NI	D7871824		Glass, Full Shelf Assembly		Appelez-nous	-
NI	R0179160		Crisper Frame Assy-glass		Appelez-nous	-
NI	R0179159		Crisper Frame Assy-glass		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
