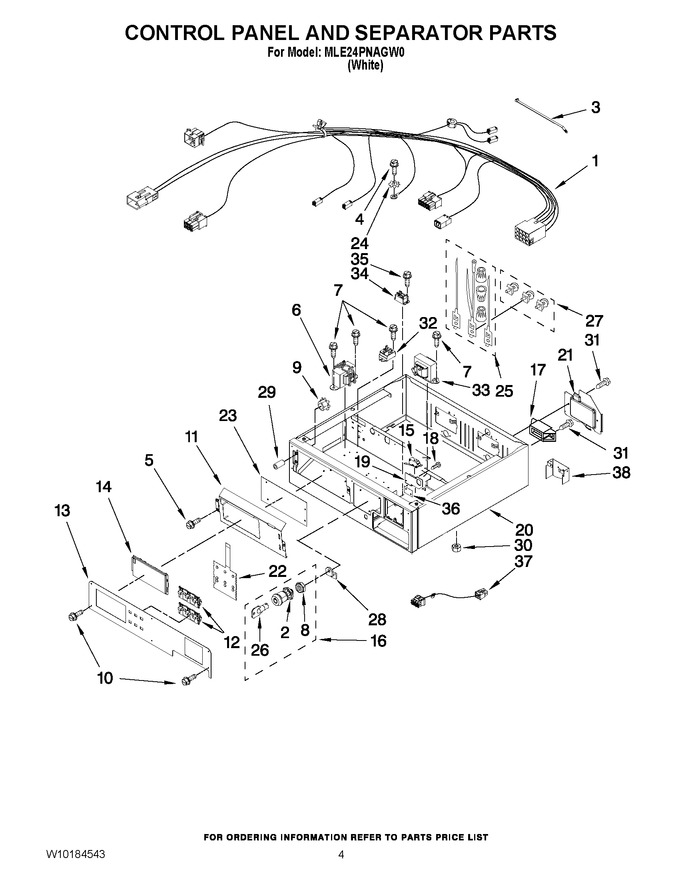

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11352539 | Harness, Collar (Replaces: W10169694) |
|
- | |||||
| 2 | W11395752 | Hex Nut, 3/4-27 (Replaces: W10139762) |
|
$ 13.69 | |||||
| 3 | WPW10155270 | Tie Cable (Replaces: 8529895) |
|
$ 7.02 | |||||
| 4 | W10850756 | Screw (Replaces: 697776) |
|
$ 8.20 | |||||
| 5 | W10756178 | Screw (Replaces: W10140652) |
|
$ 6.29 | |||||
| 6 | W10237957 | Transformer 120 - 22.5 Vac |
|
- | |||||
| 7 | W10080820 | Screw |
|
- | |||||
| 8 | WPW10133264 | Hex-nut 9/32 - 28 (Replaces: W10177242) |
|
$ 145.97 | |||||
| 9 | WPW10139046 | Nut 6-32 (Replaces: W10139046) |
|
$ 9.23 | |||||
| 10 | WPW10131119 | Screw (Replaces: W10131119) |
|
$ 7.30 | |||||
| 11 | W10163677 | Plate, Control Mounting |
|
- | |||||
| 12 | WPW10424308 | Push Button (Replaces: W10131113) |
|
Immediately | $ 21.44 | ||||
| 13 | W10135193 | Facia Console |
|
- | |||||
| 14 | WPW10133268 | Cover, Display (Replaces: W10133268) |
|
$ 73.93 | |||||
| 15 | W10133281 | Switch, Service Access |
|
- | |||||
| 16 | WPW10133264 | Lock Assembly (Replaces: W10133264) |
|
$ 145.97 | |||||
| 17 | W11690172 | Terminal-block (Replaces: W10237321) |
|
$ 397.70 | |||||
| 18 | 3400408 | Screw |
|
- | |||||
| 19 | W10160652 | Bracket-switch |
|
- | |||||
| 20 | W10165714 | Collar |
|
- | |||||
| 21 | W10684155 | Cover, Terminal Block (Replaces: W10196677) |
|
- | |||||
| 22 | WPW10133278 | Membrane Switch Assembly (Replaces: W10133278) |
|
$ 122.19 | |||||
| 23 | WPW10167611 | Control Board (Replaces: W10167611) |
|
$ 439.61 | |||||
| 24 | 3390443 | Retainer, Terminal |
|
- | |||||
| 25 | 279318 | Terminal Brass Tinned (3) (includes Item. 35 ) |
|
Immediately | $ 106.04 | ||||
| 26 | WPW10140858 | Key, Access Door (Replaces: W10140858) |
|
Immediately | $ 22.10 | ||||
| 27 | 279393 | Terminal-block Screw Kit (for Terminal Block |
|
Immediately | $ 55.66 | ||||
| 28 | W10233256 | Locking Cam |
|
$ 77.22 | |||||
| 29 | W11117166 | Standoff, Circuit Board (Replaces: W10133514) |
|
- | |||||
| 30 | WPW10080190 | Nut, 3/8-16 (Replaces: W10080190) |
|
Immediately | $ 10.01 | ||||
| 31 | W11676450 | Screw (Replaces: 3400000) |
|
$ 14.76 | |||||
| 32 | W10133335 | Relay-spt |
|
$ 40.14 | |||||
| 33 | W10237958 | Transformer 240 - 120 Vac |
|
- | |||||
| 34 | W11553481 | Relay, Heater (Replaces: W10258680) |
|
- | |||||
| 35 | WP489464 | Screw, 8-18 X 1/2 (Replaces: W10080700) |
|
Immediately | $ 8.38 | ||||
| 36 | W10151156 | Shield, Sensor Switch |
|
- | |||||
| 37 | W10111027 | Jumper, Transformer |
|
$ 48.10 | |||||
| 38 | W10192090 | Bracket, Terminal Block |
|
$ 108.39 |
