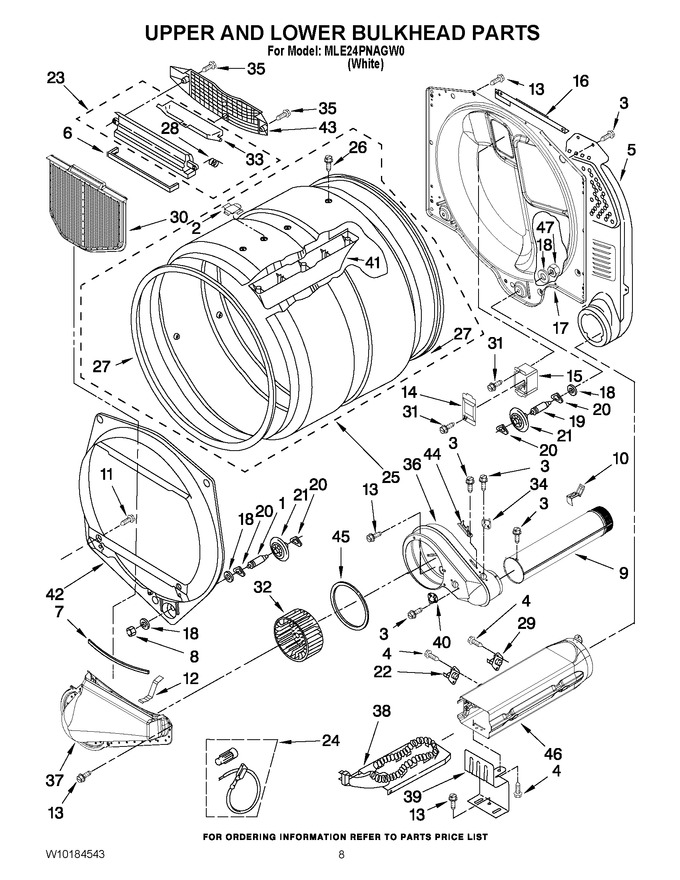

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, R.h. Thread (Replaces: 8575324) |
|
Immediately | $ 62.21 | ||||
| 2 | W10665050 | Drum, Caplug (Replaces: W10128544) |
|
$ 20.15 | |||||
| 3 | W10080820 | Screw |
|
- | |||||
| 4 | W10080300 | Screw |
|
- | |||||
| 5 | WP3387911 | Air Duct Assembly (Replaces: 697354) |
|
$ 327.31 | |||||
| 6 | WP697813 | Foam-seal (Replaces: 697813) |
|
Immediately | $ 8.37 | ||||
| 7 | WP697813 | Seal, Drum Front (Replaces: 697814) |
|
Immediately | $ 8.37 | ||||
| 8 | W11812294 | Nut, 3/8 X 16 (r.h.) (Replaces: W10080210) |
|
$ 12.77 | |||||
| 9 | W10121167 | Exhaust Pipe |
|
- | |||||
| 10 | W11684573 | Clip, Exhaust (Replaces: 8572105) |
|
$ 8.17 | |||||
| 11 | W10080590 | Screw |
|
- | |||||
| 12 | WP8066208 | Clip Spring (Replaces: 8066208) |
|
$ 8.83 | |||||
| 13 | WP489464 | Screw (Replaces: W10080700) |
|
Immediately | $ 8.38 | ||||
| 14 | W11226088 | Lens, Drum Light (Replaces: 3402841) |
|
$ 32.64 | |||||
| 15 | 8578825 | Bracket, Drum Light |
|
$ 21.92 | |||||
| 16 | W10118337 | Bracket-bulkhead Upper Mounting |
|
- | |||||
| 17 | W11299301 | Bulkhead, Rear (Replaces: 8520836) |
|
$ 260.14 | |||||
| 18 | W11236646 | Washer, Support (Replaces: W10080960) |
|
Immediately | $ 14.73 | ||||
| 19 | WPW10359272 | Shaft, L.h. Thread (Replaces: 8575325) |
|
Immediately | $ 58.48 | ||||
| 20 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 21 | WPW10314173 | Roller, Support (Replaces: 8536973) |
|
Immediately | $ 28.50 | ||||
| 22 | WPW10168175 | Thermostat High Limit (Replaces: W10168175) |
|
$ 130.03 | |||||
| 23 | W11197085 | Housing, Outlet (Replaces: W10181928) |
|
$ 44.99 | |||||
| 24 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) High Limit |
|
Immediately | $ 7.92 | ||||
| 25 | W10545923 | Drum Complete (Replaces: 8528998) |
|
$ 458.60 | |||||
| 26 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 8.18 | ||||
| 27 | 280114 | Seal, Drum (Replaces: W10166807) |
|
Immediately | $ 70.82 | ||||
| 28 | WP3394986 | Spring, Lint Screen (Replaces: 3394986) |
|
$ 93.47 | |||||
| 29 | W10154212 | Thermal-cutoff (includes Item. 22 ) (Replaces: W10141623) |
|
$ 122.66 | |||||
| 30 | W10120998 | Lint Screen (Replaces: W10049370) |
|
$ 67.16 | |||||
| 31 | WP488729 | Screw (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 32 | WPW10349492 | Wheel, Blower (Replaces: W10168564) |
|
Immediately | $ 120.33 | ||||
| 33 | W10181925 | Door, Lint Screen |
|
$ 18.96 | |||||
| 34 | WPW10194158 | Thermostat, 140° F Cycling (Replaces: W10194158) |
|
$ 83.20 | |||||
| 35 | WP3387230 | Screw (Replaces: 3387230) |
|
Immediately | $ 8.54 | ||||
| 36 | W10888146 | Housing, Blower (Replaces: W10119255) |
|
$ 106.79 | |||||
| 37 | WPW10128606 | Lint Duct Assembly (Replaces: 8066168) |
|
$ 217.48 | |||||
| 38 | WP3387749 | Heater Element (Replaces: 3387749) |
|
Immediately | $ 328.58 | ||||
| 39 | 8066099 | Bracket, Heater Box (Replaces: W10119253) |
|
$ 26.81 | |||||
| 40 | WPW10206206 | Thermostat 155° Electronic (Replaces: W10206206) |
|
$ 79.52 | |||||
| 41 | W11782150 | Baffle, Drum (Replaces: 697693) |
|
Immediately | $ 95.57 | ||||
| 42 | WP697557 | Bulkhead, Front (Replaces: 697557) |
|
$ 218.43 | |||||
| 43 | W11086603 | Grille, Outlet (Replaces: W10181926) |
|
Immediately | $ 36.90 | ||||
| 44 | WPW10167627 | Thermal Limiter (Replaces: W10167627) |
|
$ 103.47 | |||||
| 45 | W10181918 | Foam-seal |
|
- | |||||
| 46 | W10802681 | Heater Box (Replaces: 3392537) |
|
Immediately | $ 129.67 | ||||
| 47 | WPW10080190 | Nut, 3/8-16 (l.h.) (Replaces: W10080190) |
|
Immediately | $ 10.01 |
