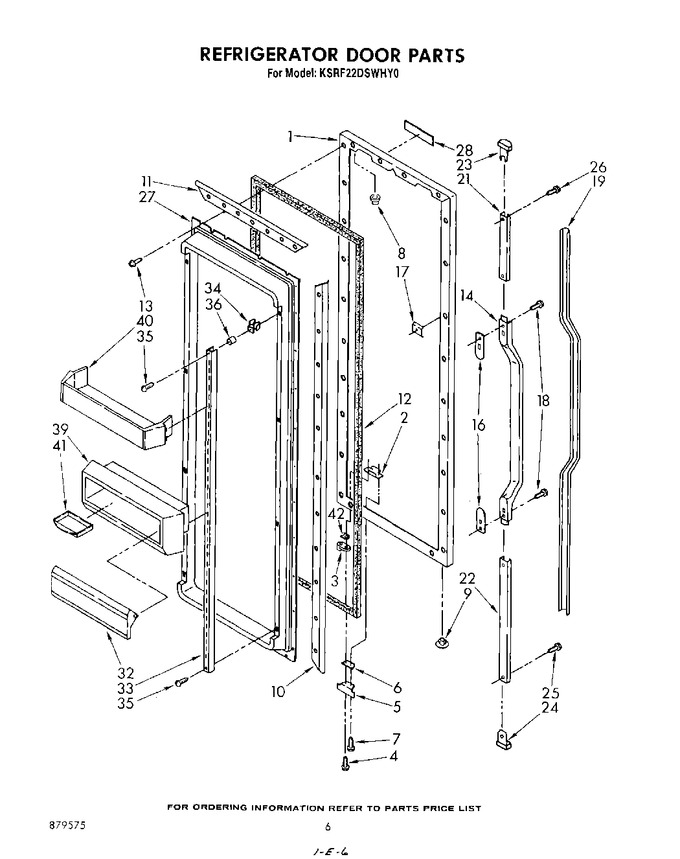

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1107697		Refrigerator, Door Panel (platinum)		Appelez-nous	-
1	1107213		Refrigerator, Door Panel (white)		Appelez-nous	-
1	1107698		Refrigerator, Door Panel (almond)		Appelez-nous	-
1	1107696		Refrigerator, Door Panel (toast)		Appelez-nous	-
2	988402		Tap Plate		Appelez-nous	-
3	4318165		Door, Cam Upper   (Replaces: 986758)			Immediately	$ 29.74
4	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 8.40
5	1107200		Bracket, Door Stop		Appelez-nous	-
6	988421		Shim		Appelez-nous	-
7	488549		Screw, 8 X 5/8		Appelez-nous	-
8	509929		Cap, Hinge		Appelez-nous	-
9	534927		Hole Plug		Appelez-nous	-
10	836120		Retainer, Side		Appelez-nous	-
11	836121		Retainer, Top & Bottom		Appelez-nous	-
12	2188404A		Door, Gasket   (Replaces: 939565)				$ 269.26
13	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 8.47
13	WP489069		Screw, No.7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
14	1107215		Handle Center		Appelez-nous	-
16	1107651		Shim, Handle Center (2)		Appelez-nous	-
17	941242		Screw Anchor (2)		Appelez-nous	-
18	WPW10141645		Screw, 8 X 1/2 (4)   (Replaces: 489084)				$ 8.05
19	1107930		Insert, Handle (black) (for Platinum Model)		Appelez-nous	-
19	1107234		Insert, Handle		Appelez-nous	-
21	1107241		Retainer, Insert		Appelez-nous	-
22	1107617		Retainer, Insert		Appelez-nous	-
23	1107341		End Cap		Appelez-nous	-
24	1107342		End Cap Insert		Appelez-nous	-
25	488915		Screw, 6-32 X 1/2		Appelez-nous	-
26	489075		Screw, 10-32 X 3/8		Appelez-nous	-
27	1107268		Interior Door, Panel		Appelez-nous	-
28	1107915		Nameplate		Appelez-nous	-
32	1107289		Compartment Door		Appelez-nous	-
33	1107295		Shelf Ladder		Appelez-nous	-
34	537095		Clip, Expansion		Appelez-nous	-
35	489188		Screw, 8-15 X 1 1/4 (8)		Appelez-nous	-
36	1107352		Spacer, Shelf		Appelez-nous	-
39	1107284		Shelf, Door Cantilever Bin		Appelez-nous	-
40	1107310		Cantilever, Door Shelf		Appelez-nous	-
41	520747		Tray, Butter		Appelez-nous	-
42	WP1104787		Shim, Door Closer Cam   (Replaces: 1104787)				$ 7.96
