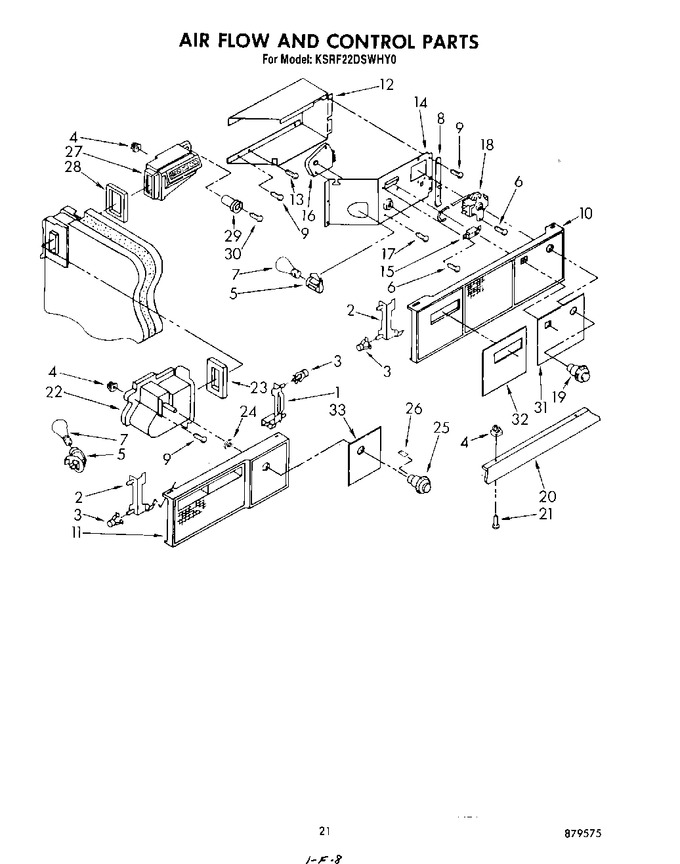

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	842355		Support, Light Lens (r.s.)		Appelez-nous	-
2	842356		Support, Light Lens (l.s.) (2)		Appelez-nous	-
3	843945		Clip, Tubular (6)		Appelez-nous	-
4	842339		Grommet		Appelez-nous	-
5	4387478		Socket, Light (2)   (Replaces: 851067)			Immediately	$ 115.67
6	WP489128		Screw, 8-32 X 3/8 (4)   (Replaces: 488500)				$ 11.40
7	8009		Light Bulb (2)   (Replaces: 527949)			Immediately	$ 18.67
8	984552		Support, Light Lens (r.s.)		Appelez-nous	-
9	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
10	1106241		Light, Lens		Appelez-nous	-
11	1106242		Light Lens, Freezer		Appelez-nous	-
12	984550		Box, Control		Appelez-nous	-
13	488474		Screw, 8-32 X 3/8		Appelez-nous	-
14	934045		Control, Front		Appelez-nous	-
15	938049		Bracket, Switch		Appelez-nous	-
16	W10822278		Defrost, Timer (10 Hour)   (Replaces: 943435)			Immediately	$ 34.44
17	WP3388228		Screw, 6-20 X 3/8 (2)   (Replaces: 488911)				$ 7.30
18	WP4317800		Thermostat & Barrier   (Replaces: 1107261)			Immediately	$ 278.68
19	836482		Knob, Temperature Control		Appelez-nous	-
20	836216		Baffle, Liner		Appelez-nous	-
21	WP489069		Screw, 8 X 1/2   (Replaces: 488772)			Immediately	$ 8.40
22	841269		Air Scoop (includes Illus. 23)		Appelez-nous	-
23	844871		Gasket Scoop		Appelez-nous	-
24	938439		Retainer, Damper		Appelez-nous	-
25	837445		Control Knob		Appelez-nous	-
26	837444		Knob, Retainer		Appelez-nous	-
27	946145		Air Diffuser Assembly		Appelez-nous	-
28	842394		Gasket Diffuser		Appelez-nous	-
29	836667		Spacer		Appelez-nous	-
30	488357		Screw, 8 X 1-1/4		Appelez-nous	-
31	1107357		Overlay, Light Lens (r.s)		Appelez-nous	-
32	1107007		Overlay, Light Lens (l.s)		Appelez-nous	-
33	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
33	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
33	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
33	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
33	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
33	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
33	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
33	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
33	1107393		Overlay, Light Lens (freezer)		Appelez-nous	-
33	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
33	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
33	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
33	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
33	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
33	833938		Kit, Terminal Connector				$ 8.47
33	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
33	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
33	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
33	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
33	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
33	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
33	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
33	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
33	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
	LIT879575		List, Parts		Appelez-nous	-
	285365		Paint, Spray (13 Oz.) (toast)		Appelez-nous	-
	LIT1107426		Energy Label		Appelez-nous	-
	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
	LIT1107414		Care & Use Guide		Appelez-nous	-
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
	350942		Primer White (13 Oz. Spray Can)				$ 94.14
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	LIT946553		Service & Wiring Sheet		Appelez-nous	-
