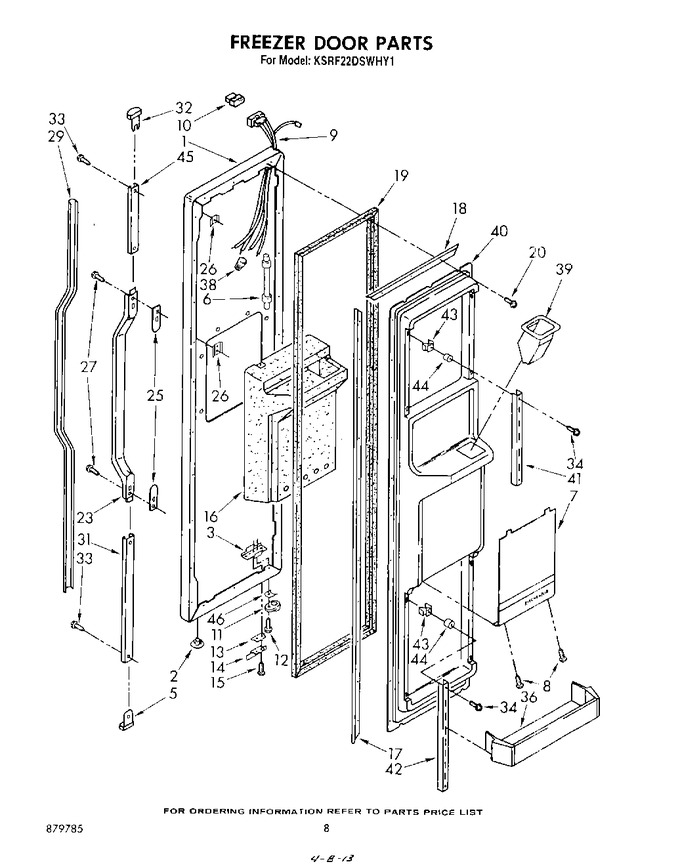

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1107694 | Door, Freezer (platinum) |
|
- | |||||
| 1 | 1107327 | Door, Freezer (white) |
|
- | |||||
| 1 | 1107695 | Door, Freezer (almond) |
|
- | |||||
| 1 | 1107693 | Door, Freezer (toast) |
|
- | |||||
| 2 | 1100196 | Hole Plug (toast) |
|
- | |||||
| 2 | 534927 | Plug, Hole (white) |
|
- | |||||
| 2 | 989197 | Plug, Hole (almond) |
|
- | |||||
| 2 | 1100197 | Hole Plug (platinum) |
|
- | |||||
| 3 | 988402 | Tap Plate |
|
- | |||||
| 5 | 1107342 | End Cap, Bottom |
|
- | |||||
| 6 | 991415 | Tube, Door Wiring |
|
- | |||||
| 8 | WP488729 | Screw, 8 X 1/2 (Replaces: 488320) |
|
Immediately | $ 8.28 | ||||
| 9 | 851373 | Plug, Crossover (includes Illus. 10) |
|
- | |||||
| 10 | 851649 | Connector, Plug |
|
- | |||||
| 11 | 4318165 | Door, Closer (Replaces: 986758) |
|
Immediately | $ 29.74 | ||||
| 12 | WP489069 | Screw, 8 X 1/2 (Replaces: 488938) |
|
Immediately | $ 8.40 | ||||
| 13 | 988421 | Shim |
|
- | |||||
| 14 | 1107200 | Bracket, Door Stop |
|
- | |||||
| 15 | 488930 | Screw (repair) |
|
- | |||||
| 15 | 488549 | Screw, 8 X 5/8 |
|
- | |||||
| 16 | 938649 | Insulation, Dispenser |
|
- | |||||
| 17 | 836120 | Retainer, Side (2) |
|
- | |||||
| 18 | 836122 | Retainer, Top & Bottom (2) |
|
- | |||||
| 19 | 2188405A | Gasket, Door Magnetic (Replaces: 939566) |
|
$ 368.63 | |||||
| 20 | WP681414 | Screw, 10-12 X 3/8 (Replaces: 488552) |
|
Immediately | $ 8.47 | ||||
| 20 | WP489069 | Screw, 7 X 1/2 (Replaces: 489101) |
|
Immediately | $ 8.40 | ||||
| 23 | 1107215 | Handle Center |
|
- | |||||
| 25 | 1107651 | Shim, End Center |
|
- | |||||
| 26 | 941242 | Screw Anchor |
|
- | |||||
| 27 | WPW10141645 | Screw, 8 X 1/2 (4) (Replaces: 489084) |
|
$ 8.05 | |||||
| 29 | 1107930 | Insert, Handle (black) (for Platinum Model) |
|
- | |||||
| 29 | 1107234 | Insert, Handle |
|
- | |||||
| 31 | 1107617 | Retainer, Insert |
|
- | |||||
| 32 | 1107341 | End Cap |
|
- | |||||
| 33 | 489075 | Screw, 10-32 X 5/8 |
|
- | |||||
| 34 | 489188 | Screw, 8-15 X 1 1/4 (8) |
|
- | |||||
| 36 | 1107368 | Cantilever, Door Shelf |
|
- | |||||
| 38 | 227991 | Connector, Screw |
|
- | |||||
| 39 | 987188 | Ice Chute |
|
- | |||||
| 40 | 1107363 | Interior, Door Panel |
|
- | |||||
| 41 | 1107372 | Shelf Ladder Top (2) |
|
- | |||||
| 42 | 1107374 | Shelf Ladder Bottom (2) |
|
- | |||||
| 43 | 537095 | Expansion Clip (8) |
|
- | |||||
| 44 | 1107352 | Spacer, Shelf Ladder (8) |
|
- | |||||
| 45 | 1107241 | Retainer, Insert |
|
- | |||||
| 46 | WP1104787 | Shim, Door Closer Cam (Replaces: 1104787) |
|
$ 7.96 | |||||
| NI | 1107376 | Overlay, Ice Dispenser |
|
- |
