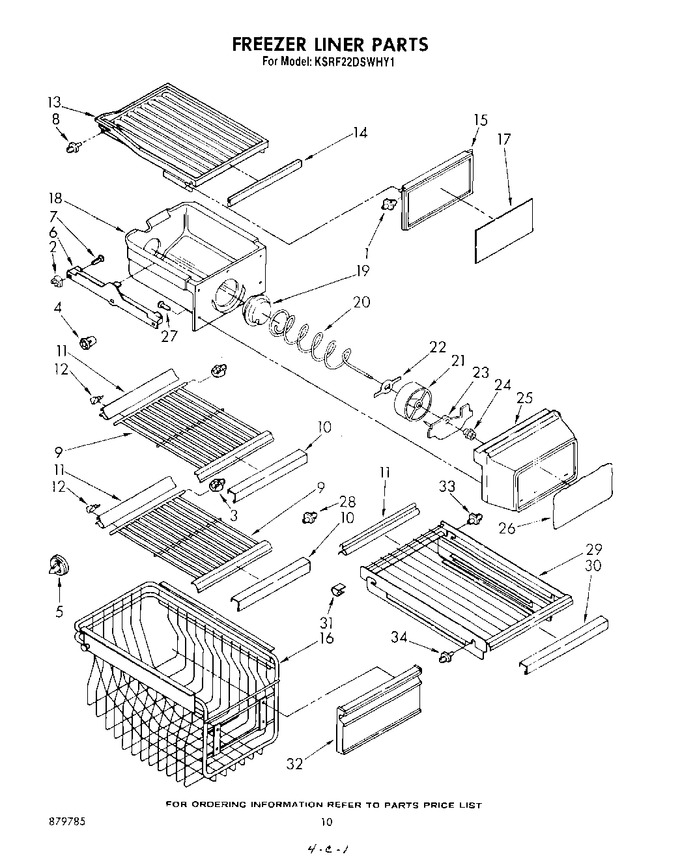

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	521516		Stud, Door Stop		Appelez-nous	-
2	842339		Grommet		Appelez-nous	-
3	210518		Shelf Support		Appelez-nous	-
4	533881		Grommet		Appelez-nous	-
5	512900		Retainer Stud		Appelez-nous	-
6	982321		Slide, Freezer Bin (4)		Appelez-nous	-
7	487979		Screw, 8 X 1 (8)		Appelez-nous	-
8	521878		Stud Shelf		Appelez-nous	-
9	1107098		Shelf, Freezer		Appelez-nous	-
10	1107108		Trim, Shelf		Appelez-nous	-
11	1107110		Reflector, Shelf		Appelez-nous	-
12	1107450		Clip, Reflector (2)		Appelez-nous	-
13	938551		Solid Shelf		Appelez-nous	-
14	1106277		Trim, Shelf		Appelez-nous	-
15	1106279		Front, Ice Compartment		Appelez-nous	-
16	1107126		Freezer, Basket		Appelez-nous	-
17	1107118		Overlay, Ice Compartment		Appelez-nous	-
18	938568		Ice Container		Appelez-nous	-
19	W10749708		Coupling, Ice Conveyor   (Replaces: 983668)				$ 27.44
20	946191		Conveyor, Ice Dispenser		Appelez-nous	-
21	4388736		Ice Dispenser, Drum   (Replaces: 946193)				$ 96.97
22	4388736		Drive Bar, Drum   (Replaces: 946192)				$ 96.97
23	946194		Baffle		Appelez-nous	-
24	946195		Nut, Bearing		Appelez-nous	-
25	1106297		Front, Cover Container		Appelez-nous	-
26	1107385		Overlay, Front Cover		Appelez-nous	-
27	WP488787		Screw, (8-18 X 1/2)   (Replaces: 488886)				$ 11.26
28	937513		Shelf, Stud		Appelez-nous	-
29	1107418		Shelf, Freezer Basket		Appelez-nous	-
30	1107420		Trim, Shelf Basket		Appelez-nous	-
31	1107246		Clip, Reflector		Appelez-nous	-
32	1107131		Front, Freezer Basket		Appelez-nous	-
33	1107967		Shelf, Stud		Appelez-nous	-
34	1107968		Shelf, Stud		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
