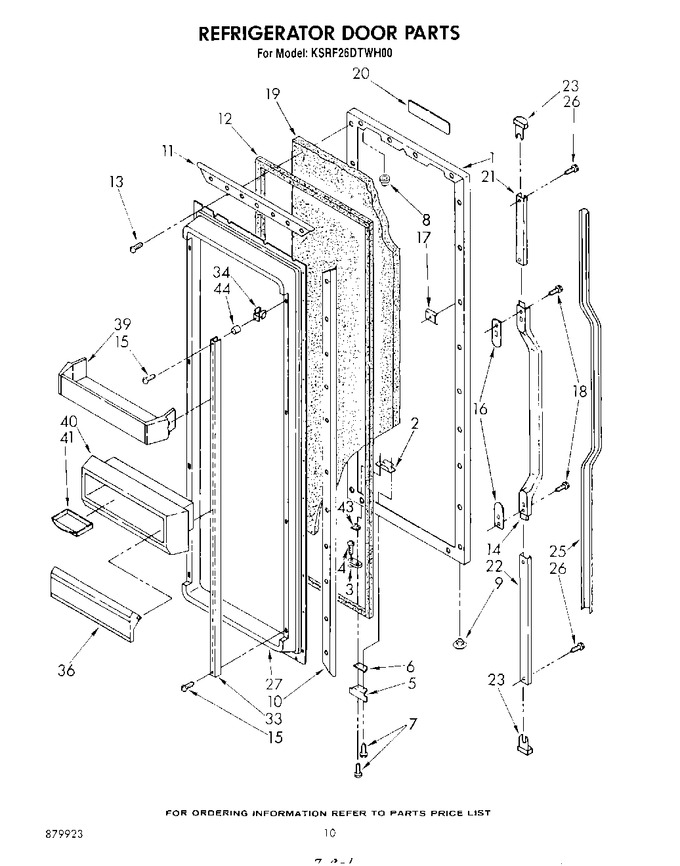

KSRF26DTAL00 | Leon's : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	1117611	Refrigerator, Door Panel (almond)	Appelez-nous	-
1	1117585	Refrigerator, Door Panel (platinum (also Order Item 19 When Replaceing Door))	Appelez-nous	-
1	1117584	Refrigerator, Door Panel (toast)	Appelez-nous	-
1	1117583	Refrigerator, Door Panel (white)	Appelez-nous	-
2	988402	Tap Plate	Appelez-nous	-
3	4318165	Door Closer, Upper Cam (Replaces: 1115905)		Immediately	$ 27.36
4	WP489069	Screw, 8 X 1/2 (Replaces: 488938)		Immediately	$ 7.86
5	1115906	Bracket, Door Stop	Appelez-nous	-
6	988421	Shim	Appelez-nous	-
7	WP488921	Screw, 8 X 1/2 (Replaces: 488921)		Immediately	$ 7.75
8	509929	Cap, Hinge	Appelez-nous	-
9	534927	Hole Plug	Appelez-nous	-
10	982887	Retainer, Side	Appelez-nous	-
11	836121	Retainer, Top & Bottom	Appelez-nous	-
12	939341	Door, Gasket Magnetic	Appelez-nous	-
13	WP681414	Screw ((repair)) (Replaces: 488552)		Immediately	$ 7.85
13	WP489069	Screw, No.7 X 1/2 (Replaces: 489101)		Immediately	$ 7.86
14	1107215	Handle Center	Appelez-nous	-
15	489188	Screw, 8-15 X 1-1/4 (10)	Appelez-nous	-
16	1107651	Shim, Handle Center (2)	Appelez-nous	-
17	941242	Screw Anchor (2)	Appelez-nous	-
18	WP488729	Screw, 8 X 1/2 (4) (Replaces: 487909)		Immediately	$ 7.79
19	876029	Foam Insulation	Appelez-nous	-
20	1107915	Nameplate	Appelez-nous	-
21	1107243	Retainer, Insert	Appelez-nous	-
22	1107209	Retainer, Insert	Appelez-nous	-
23	1107341	End Cap (2)	Appelez-nous	-
25	1117549	Insert, Handle	Appelez-nous	-
26	00489248	Screw, 10-32 X 5/8 (2) (Replaces: 489248)			$ 38.59
27	1107269	Interior Door Panel	Appelez-nous	-
33	1107296	Shelf Ladder	Appelez-nous	-
34	537095	Clip, Expansion	Appelez-nous	-
36	1107289	Door, Utility	Appelez-nous	-
39	1107310	Door Shelf,	Appelez-nous	-
40	1107284	Bin, Utility	Appelez-nous	-
41	520747	Tray, Butter	Appelez-nous	-
43	WP1104787	Shim, Door Closer (Replaces: 1104787)			$ 7.58
44	1107352	Spacer, Shelf Ladder (10)	Appelez-nous	-
