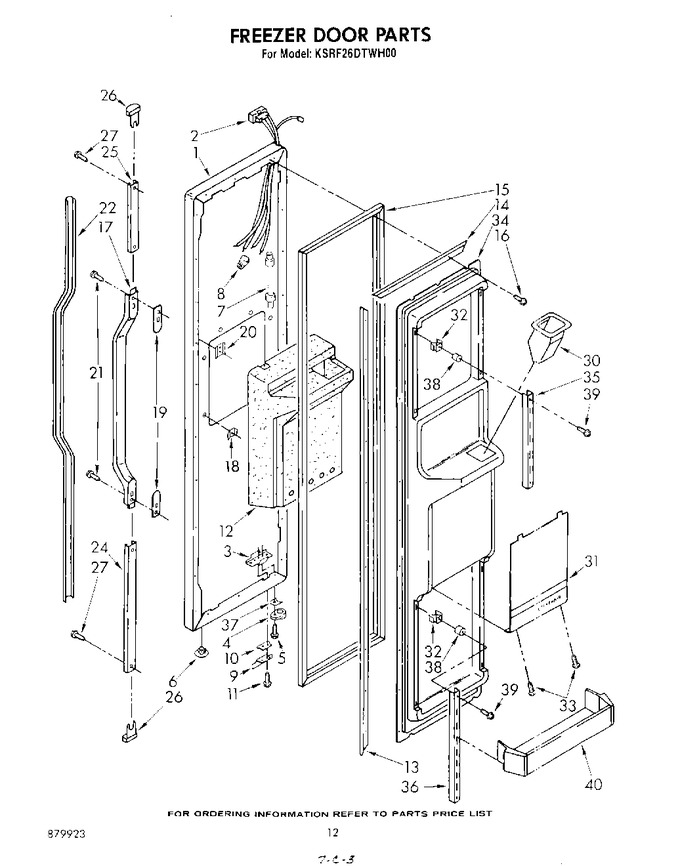

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1117577		Exterior Door Panel Freezer (white)		Appelez-nous	-
1	1117580		Exterior Door Panel Freezer (almond)		Appelez-nous	-
1	1117578		Exterior Door Panel Freezer (toast)		Appelez-nous	-
1	1117579		Exterior Door Panel Freezer (platinum)		Appelez-nous	-
2	851373		Plug, Crossover		Appelez-nous	-
3	988402		Tap Plate		Appelez-nous	-
4	4318165		Door Closer, Upper Cam   (Replaces: 1115905)			Immediately	$ 29.74
5	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 8.40
6	534927		Hole Plug		Appelez-nous	-
7	991415		Tube, Door Wiring		Appelez-nous	-
8	227991		Wire Connector		Appelez-nous	-
9	1115906		Bracket, Door Stop		Appelez-nous	-
10	988421		Shim		Appelez-nous	-
11	WP488921		Screw, 8 X 1/2 (2)   (Replaces: 488921)			Immediately	$ 8.24
12	1107957		Dispenser, Insulation		Appelez-nous	-
13	982887		Retainer, Gasket Side		Appelez-nous	-
14	983643		Retainer, Gasket Top & Bottom		Appelez-nous	-
15	939342		Door Gasket, Magnetic		Appelez-nous	-
16	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
16	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 8.47
17	1107215		Handle Center		Appelez-nous	-
18	WP939101		Screw Anchor (10)   (Replaces: 1114483)				$ 7.88
19	1107651		Shim, Handle Center		Appelez-nous	-
20	941242		Screw Anchor (2)		Appelez-nous	-
21	WP488729		Screw, 8 X 1/2 (4)   (Replaces: 487909)			Immediately	$ 8.28
22	1117549		Insert, Handle		Appelez-nous	-
24	1107209		Retainer, Insert (bottom)		Appelez-nous	-
25	1107243		Retainer Insert (top)		Appelez-nous	-
26	1107341		End Cap (2)		Appelez-nous	-
27	00489248		Screw, 10-32 X 5/8 (2)   (Replaces: 489248)				$ 38.59
30	987188		Ice Chute		Appelez-nous	-
31	1107377		Overlay, Ice Dispenser		Appelez-nous	-
32	537095		Expansion Clip		Appelez-nous	-
33	WP488729		Screw, 8 X 1/2   (Replaces: 488320)			Immediately	$ 8.28
34	1107364		Interior, Door Panel		Appelez-nous	-
35	1107373		Door Shelf, Ladder (top)		Appelez-nous	-
36	1107375		Door Shelf, Ladder (bottom)		Appelez-nous	-
37	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 7.96
38	1107352		Spacer, Shelf Ladder (8)		Appelez-nous	-
39	489188		Screw, 8-15 X 1 1/4 (8)		Appelez-nous	-
40	1107369		Door Shelf, Cantilever		Appelez-nous	-
