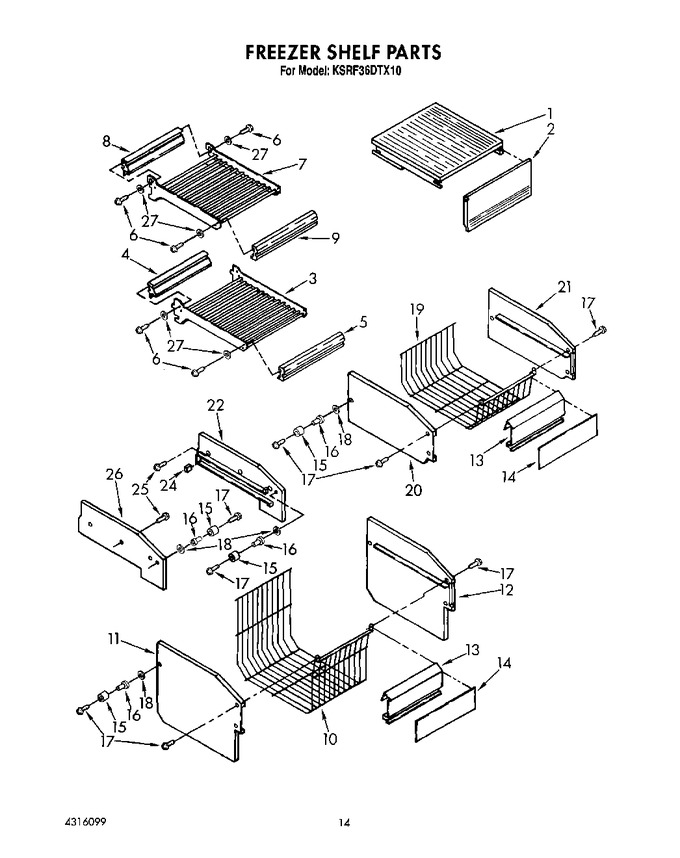

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1112365		Solid Shelf		Appelez-nous	-
2	1112393		Front, Ice Compartment		Appelez-nous	-
3	1112340		Shelf, Fixed (2)		Appelez-nous	-
4	1112348		Reflector, Shelf		Appelez-nous	-
5	1112354		Trim, Shelf		Appelez-nous	-
6	489210		Screw, 6-32 X 1/2		Appelez-nous	-
7	1112360		Shelf, Cantilever		Appelez-nous	-
8	1112345		Reflector, Shelf		Appelez-nous	-
9	1112350		Trim, Shelf		Appelez-nous	-
10	1112305		Basket (large)		Appelez-nous	-
11	1112310		Side, Basket (left Side)		Appelez-nous	-
12	1112311		Side, Basket (right Side)		Appelez-nous	-
13	1112315		Front, Basket		Appelez-nous	-
14	1112320		Overlay, Front		Appelez-nous	-
15	1112303		Roller		Appelez-nous	-
16	1112308		Eyelet, Roller		Appelez-nous	-
17	WPW10272364		Screw, 10-16 X 3/4   (Replaces: 489211)			Immediately	$ 11.36
18	488307		Washer		Appelez-nous	-
19	1112335		Basket (small)		Appelez-nous	-
20	1112312		Side, Basket (left Side)		Appelez-nous	-
21	1112313		Side, Basket (right Side)		Appelez-nous	-
22	1112296		Basket Spacer, Right Side (2)		Appelez-nous	-
24	1113169		Stop, Roller				$ 11.28
25	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
26	1112295		Basket Spacer, Left Side (2)		Appelez-nous	-
27	1113286		Spacer, Shelf		Appelez-nous	-
