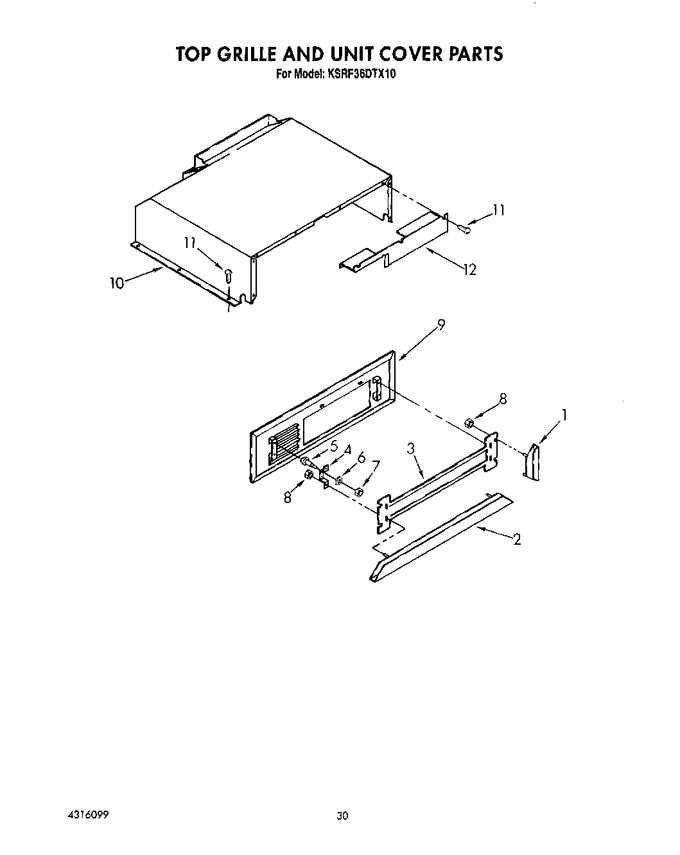

17 - Top Grille And Unit Cover


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1113311		Panel Frame, Side (2)		Appelez-nous	-
2	1113312		Panel Frame, Top & Bottom		Appelez-nous	-
3	1113313		Back Up Panel		Appelez-nous	-
4	1113324		Bracket, Keyhole Mounting (2)		Appelez-nous	-
5	1113326		Shoulder Screw (4)		Appelez-nous	-
6	489232		Spring Washer (4)		Appelez-nous	-
7	WP486255		Nut (4)   (Replaces: 486255)				$ 6.47
8	489172		Nut (8)		Appelez-nous	-
9	1113918		Top Grille Assembly		Appelez-nous	-
10	1113490		Cover, Unit		Appelez-nous	-
11	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
12	1113300		Cover, Component Assembly		Appelez-nous	-
