SELECT A DIAGRAM

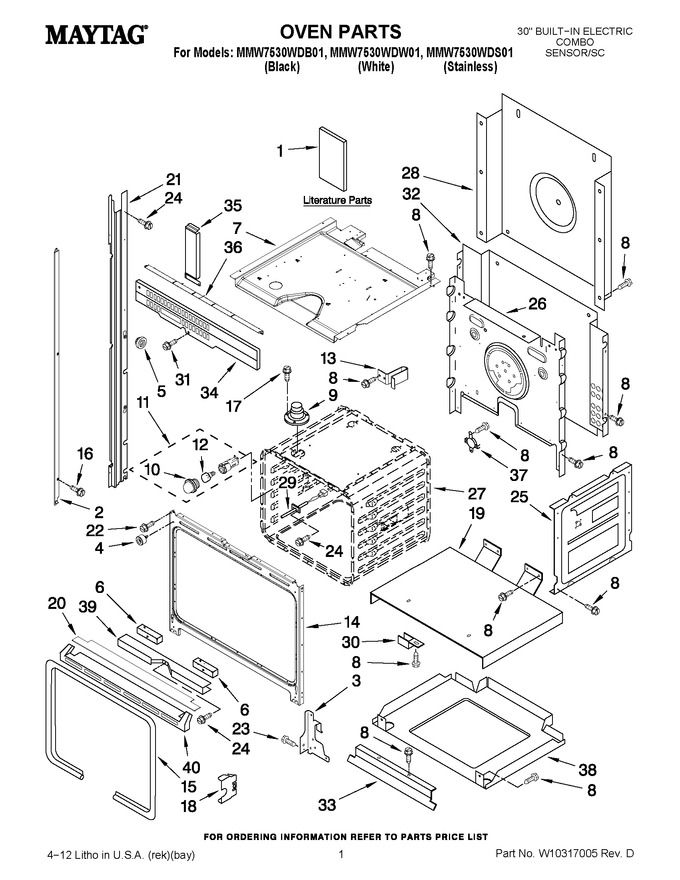

01 - Oven Parts


02 - Control Panel Parts


03 - Oven Door Parts


04 - Latch Parts


05 - Internal Oven Parts


06 - Cabinet And Stirrer Parts


07 - Microwave Compartment Parts


08 - Microwave Door Parts


09 - Top Venting Parts


10 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10192051		Installation Instructions		Appelez-nous	-
1	W10075750		Instruction, Installer		Appelez-nous	-
1	4457288		Insert, Bottom Trim Installation		Appelez-nous	-
1	W10276988		Use & Care Guide (microwave)		Appelez-nous	-
1	W10276987		Use & Care Guide (oven)		Appelez-nous	-
1	9762761		Safer Cooking Tips (english)		Appelez-nous	-
1	W10065852		Safer Cooking Tips (french)		Appelez-nous	-
1	8304173		Tech Sheet		Appelez-nous	-
2	W10274590		Trim, Side Left (stainless)		Appelez-nous	-
2	4455433		Trim, Side Left (white)		Appelez-nous	-
2	4455431		Trim, Side Left (black)				$ 65.17
2	W10274589		Trim, Side Right (stainless)		Appelez-nous	-
2	4455432		Trim, Side Right (white)		Appelez-nous	-
2	4455430		Trim, Side Right (black)				$ 67.89
3	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 131.74
3	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 127.70
4	W10105790		Bumper, Door (black, White Models)				$ 7.41
4	4448520		Bumper, Door (stainless Model)				$ 22.25
5	WP4448444		Grommet, Mounting Rail   (Replaces: 4448444)				$ 7.85
6	4452490		Spacer, Foam				$ 34.83
7	8303099		Top, Chassis				$ 70.97
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
10	W10067870		Lens, Light				$ 65.50
11	WPW10734065		Assembly, Oven Light   (Replaces: W10009930)				$ 101.46
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 53.62
13	8300791		Bracket, Combo		Appelez-nous	-
14	WPW10115831		Frame, Front   (Replaces: W10115831)				$ 351.89
15	W11675844		Gasket, Door   (Replaces: 4455382)			Immediately	$ 74.56
16	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
17	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
18	4452152		Bracket, Mounting				$ 35.18
19	4451478		Support, Insulation				$ 54.10
20	W10110697		Insulation, Bottom Vent		Appelez-nous	-
21	4450584		Rail, Side (left)		Appelez-nous	-
21	4450583		Rail, Side (right)		Appelez-nous	-
22	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
23	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
24	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
25	W10782197		Side, Chassis   (Replaces: 4455641)				$ 150.69
26	W10161110		Back, Chassis		Appelez-nous	-
27	N/P		Liner, Oven (not Serviceable)		Appelez-nous	-
28	WP4451747		Cover, Back   (Replaces: 4451747)				$ 150.07
29	WPW10131825		Sensor   (Replaces: W10131825)			Immediately	$ 95.83
30	4449845		Bracket, Support		Appelez-nous	-
31	WP4450038		Screw   (Replaces: 4450038)				$ 8.30
32	4451756		Chassis, Back		Appelez-nous	-
33	9760677		Deflector, Vent				$ 155.46
34	8302592		Vent, Center				$ 63.42
35	4449906		Ext-filler		Appelez-nous	-
36	8303502		Vent, Control		Appelez-nous	-
37	WP9759243		Thermostat   (Replaces: 9759243)			Immediately	$ 55.44
38	9759713		Base, Chassis				$ 100.19
39	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
40	W10278494		Trim, Vent Bottom (white)				$ 39.83
40	W10166934		Trim, Vent Bottom (stainless)		Appelez-nous	-
40	W10278493		Trim, Vent Bottom (black)				$ 65.74
NI	4450365		Insulation, Back				$ 70.95
NI	W11684730		Insulation, Wrap   (Replaces: 4449316)				$ 124.85

    View Diagram in Separate Window       Print Part List
