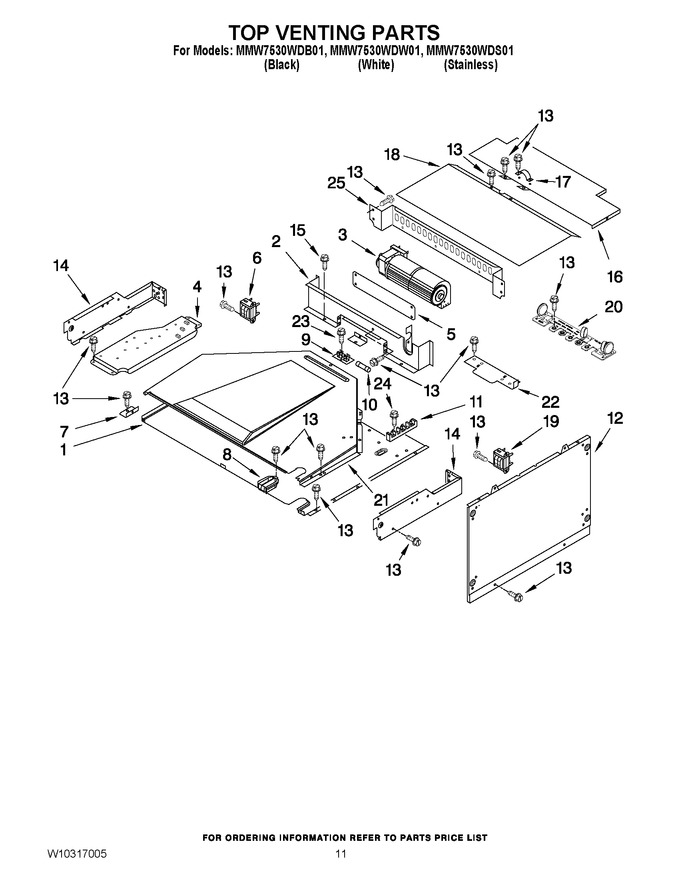

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4450378		Cover, Top		Appelez-nous	-
2	4448935		Baffle, Blower		Appelez-nous	-
3	4450920		Blower (1200 Rpm)		Appelez-nous	-
3	WPW10016550		Blower (45 Mm)   (Replaces: W10016550)			Immediately	$ 283.63
4	4451789		Plate, Mounting		Appelez-nous	-
5	4452247		Plate, Cover		Appelez-nous	-
6	9760587		Transformer, Control				$ 112.69
7	4450027		Bracket, Duct		Appelez-nous	-
8	4449964		Grommet		Appelez-nous	-
9	4454949		Holder, Fuse				$ 90.70
10	WPW10017410		Fuse, Time Delay   (Replaces: W10017410)			Immediately	$ 21.17
11	WPW10245259		Block, Terminal   (Replaces: 7401P038-60)			Immediately	$ 35.17
12	4452559		Side, Combo		Appelez-nous	-
13	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.82
14	W10755214		Side, Control Top (right)   (Replaces: 4451597)		Appelez-nous	-
14	W10790240		Side, Control Top (left)   (Replaces: 4451598)				$ 74.68
15	489392		Screw   (Replaces: 1180485)				$ 13.35
16	4450551		Cover, Top Rear		Appelez-nous	-
17	4448664		Clamp				$ 20.39
18	W10308745		Cover, Top Front		Appelez-nous	-
19	WP9760588		Transformer, 20va Light   (Replaces: 9760588)				$ 263.41
20	WP8302143		Suppressor   (Replaces: 8302143)				$ 120.94
21	4451634		Duct, Exhaust		Appelez-nous	-
22	4455191		Plate, Service		Appelez-nous	-
23	WP4449154		Screw   (Replaces: 4449154)				$ 7.56
24	W11684512		Screw   (Replaces: 3400080)				$ 14.10
25	W10123223		Back, Control				$ 37.49
