01 - Door


02 - Freezer Compartment


03 - Supplemental Information


04 - Unit Compartment & System


05 - Wiring Information

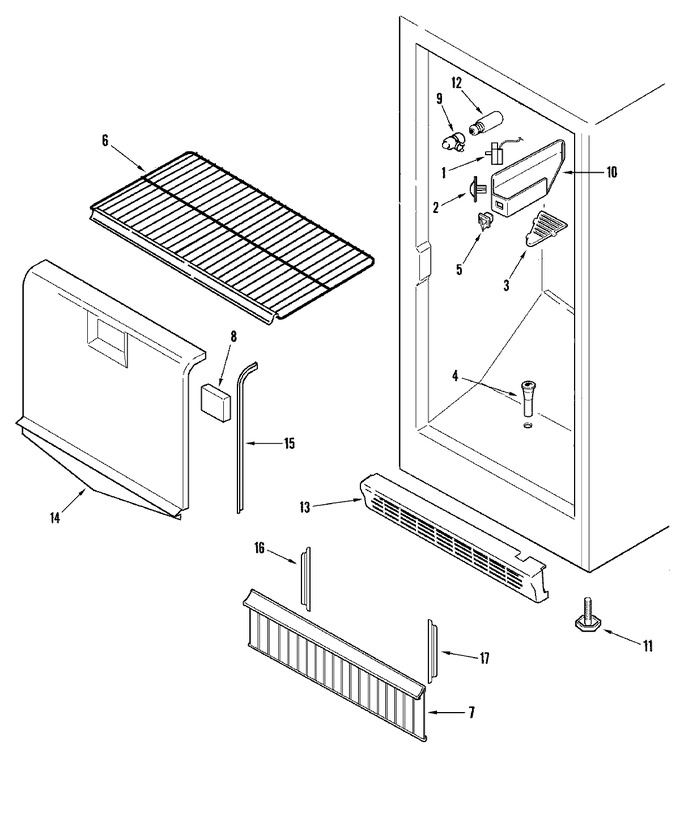

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP4-83053-002		Control, Temperature   (Replaces: 68001720)	10			$ 231.06
2	3-82390-001		Knob, Temp. Control   (Replaces: 68001721)	10			$ 27.09
3	68001726		Cover, Light (clear)	10	Appelez-nous	-
4	68001103		Plug, Drain	10	Appelez-nous	-
4	68001472		Drain Kit	10	Appelez-nous	-
5	W11384469		Switch, Light   (Replaces: 68001324)	10		Immediately	$ 35.18
6	4-82314-001		Shelf (lower)   (Replaces: 68001594)	10			$ 120.63
6	4-82315-001		Shelf (upper)   (Replaces: 68001593)	10			$ 317.21
7	68001092		Gate (wht)	10	Appelez-nous	-
8	045580-01		Seal, Air Block	10	Appelez-nous	-
9	WP3-82393-001		Receptacle, Bulb   (Replaces: 68001722)	10			$ 101.46
10	68001725		Screw	10	Appelez-nous	-
10	68001731		Housing, Control	10	Appelez-nous	-
11	W11117769		Leg Kit, Leveling (qty. 2)   (Replaces: 68001326)	10		Immediately	$ 17.43
12	68001733		Screw	10	Appelez-nous	-
12	68001732		Shield, Light Bulb	10	Appelez-nous	-
12	W11679940		Bulb, Light   (Replaces: 68001557)	10		Immediately	$ 10.67
13	WP4-60461-005		Kickplate Kit (wht)   (Replaces: 68001080)	10			$ 105.73
14	WP3-24004-109		Screw, Evap. Cover (phillips)   (Replaces: 68001121)	10			$ 8.23
14	WP489464		Screw   (Replaces: 68001474)	10		Immediately	$ 7.54
14	68001506		Cover Kit, Evaporator	10	Appelez-nous	-
15	4390664		Gasket, Evaporator Cover (lt)   (Replaces: 68001503)	10			$ 84.21
15	4390663		Gasket, Evaporator Cover (rt)   (Replaces: 68001502)	10			$ 225.86
16	68001067		Support, Gate (lt)	10	Appelez-nous	-
16	68001054		Screw, Gate Support	10	Appelez-nous	-
17	68001054		Screw, Gate Support	10	Appelez-nous	-
17	65587-1		Support, Gate (rt)	10	Appelez-nous	-
18	WP3-80414-103		Baffle, Air Duct   (Replaces: Y04557501)	10			$ 12.15
