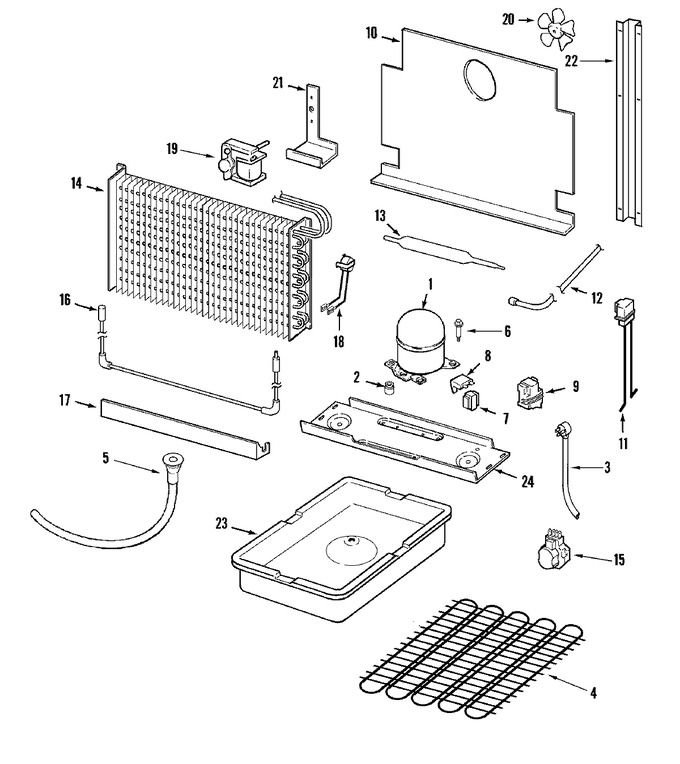

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Door
02 - Freezer Compartment
03 - Supplemental Information
04 - Unit Compartment & System
05 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10309990 | Compressor (r134a) (Replaces: 68001425) | 10 |
|
Immediately | $ 612.80 | |||
| 2 | Y09100025 | Grommet, Compressor | 10 |
|
- | ||||
| 3 | 68001718 | Cord, Power | 10 |
|
- | ||||
| 4 | W10451951 | Condenser (Replaces: 68001714) | 10 |
|
$ 270.66 | ||||
| 5 | 68001103 | Plug, Drain | 10 |
|
- | ||||
| 5 | 68001472 | Drain Kit | 10 |
|
- | ||||
| 6 | 8210220 | Screw, Compressor (Replaces: 68001627) | 10 |
|
- | ||||
| 7 | 68001368 | Relay, Start | 10 |
|
- | ||||
| 8 | WP2149959 | Overload (Replaces: 68001490) | 10 |
|
$ 126.05 | ||||
| 9 | 2217635 | Cover, Terminal (Replaces: 68001478) | 10 |
|
- | ||||
| 10 | Y04556201 | Plate | 10 |
|
- | ||||
| 11 | 3-35956-013 | Capacitor, Run (w/wires) (Replaces: 68001596) | 10 |
|
$ 109.01 | ||||
| 12 | 68001323 | Heat Exchanger | 10 |
|
- | ||||
| 13 | WPW10143759 | Drier (Replaces: 13900-1) | 10 |
|
Immediately | $ 27.70 | |||
| 14 | WP4-81546 | Evaporator (Replaces: 68001349) | 10 |
|
$ 404.47 | ||||
| 14 | Y04643801 | Grommet | 10 |
|
- | ||||
| 14 | WP489491 | Screw (Replaces: 68001715) | 10 |
|
$ 6.57 | ||||
| 15 | WP3-81329 | Timer, Defrost (Replaces: 68001115) | 10 |
|
Immediately | $ 179.23 | |||
| 16 | 8201749 | Heater, Defrost (Replaces: 68001597) | 10 |
|
$ 201.91 | ||||
| 17 | Y04556601 | Shield, Heater | 10 |
|
- | ||||
| 18 | WP1-81801-001 | Thermostat, Defrost (Replaces: R0213208) | 10 |
|
$ 116.88 | ||||
| 19 | 60001022 | Screw, Fan (Replaces: 68001081) | 10 |
|
$ 59.77 | ||||
| 19 | WP3-60336-001 | Motor, Fan (Replaces: 68001613) | 10 |
|
Immediately | $ 305.80 | |||
| 20 | WPW10445742 | Blade, Fan (Replaces: 68001595) | 10 |
|
Immediately | $ 9.50 | |||
| 21 | 2-80028-101 | Bracket Kit, Fan (Replaces: 68001321) | 10 |
|
$ 88.81 | ||||
| 21 | 046377-04 | Screw | 10 |
|
- | ||||
| 22 | 67006425 | Screw (Replaces: Y04637302) | 10 |
|
Immediately | $ 6.57 | |||
| 22 | 68001603 | Cover, Wire | 10 |
|
- | ||||
| 23 | 68001501 | Pan, Drain | 10 |
|
- | ||||
| 24 | WP3-24838-048 | Screw (Replaces: 68001353) | 10 |
|
$ 7.50 | ||||
| 24 | 68001201 | Pan Kit, Compressor Mtg. | 10 |
|
- | ||||
| 25 | 68001719 | Wire Harness, Main | 10 |
|
- | ||||
| 26 | 4-81785-001 | Wire Harness, Fan (Replaces: 68001608) | 10 |
|
- |
