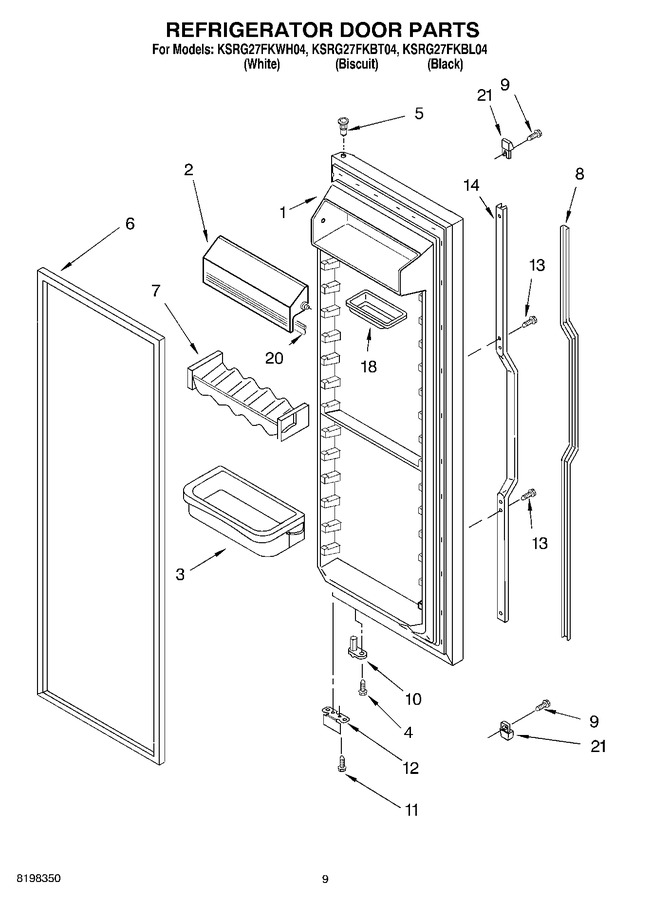

06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Air Flow


10 - Control


11 - Unit


12 - Icemaker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2207328W		Refrigerator Door (includes Item No.6) (white)		Appelez-nous	-
1	2207328T		Refrigerator Door (includes Item No.6) (biscuit)		Appelez-nous	-
1	2207328B		Refrigerator Door (includes Item No.6) (black)		Appelez-nous	-
2	2182399		Compartment Door		Appelez-nous	-
3	2171062		Shelf Bin (4)				$ 40.08
4	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
5	WP2182181		Thimble, Top   (Replaces: 2182180)				$ 7.76
6	2159083		Door Gasket, Magnetic (black)   (Replaces: 2221313)				$ 251.49
6	2159075		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221302)			Immediately	$ 317.14
7	2193409		Beverage Holder				$ 48.13
8	2173829		Handle, Insert (black)		Appelez-nous	-
8	2173825		Handle, Insert (white)		Appelez-nous	-
8	2186863T		Handle, Insert (biscuit)		Appelez-nous	-
9	WP3400852		Screw   (Replaces: 3400852)				$ 9.84
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
11	WP489483		Screw   (Replaces: 489420)				$ 10.87
12	2206630		Bracket, Door Stop		Appelez-nous	-
13	WP489463		Screw   (Replaces: 489463)				$ 7.82
14	2194777T		Retainer, Insert (biscuit)		Appelez-nous	-
14	2194777B		Retainer, Insert (black)		Appelez-nous	-
14	2194777W		Retainer, Insert (white)		Appelez-nous	-
18	2165792		Butter, Dish		Appelez-nous	-
20	2159124		Gasket		Appelez-nous	-
21	2194778B		End Cap (black)		Appelez-nous	-
21	2194778W		End Cap (white)		Appelez-nous	-
21	2194778T		End Cap (biscuit)		Appelez-nous	-
