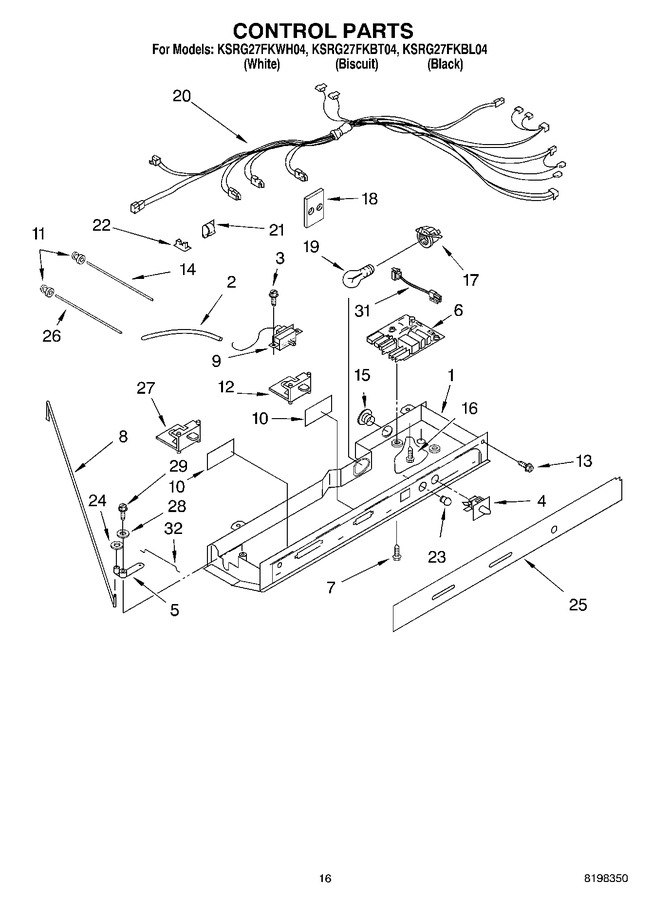

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8201785		Control Box		Appelez-nous	-
2	WP2196003		Tube Barrier, Thermostat   (Replaces: 2196001)				$ 7.95
3	2006254		Screw (3)   (Replaces: 489214)				$ 13.13
4	WP2149705		Switch, Light   (Replaces: 2149705)			Immediately	$ 40.40
5	2161306		Pivot Arm				$ 9.65
6	WPW10366605		Adaptive Defrost Control/p.c. Board Combination   (Replaces: 2213489)			Immediately	$ 276.28
7	489392		Screw (2)   (Replaces: 489398)				$ 13.35
8	2161308		Connecting Rod (long)				$ 172.11
9	WP2315562		Thermostat   (Replaces: 2161282)			Immediately	$ 106.18
10	2175513		Window		Appelez-nous	-
11	2172906		Grommet, Light Bar		Appelez-nous	-
12	2161466		Slide, Thermostat				$ 21.22
13	WPW10141645		Screw (2)   (Replaces: 489084)				$ 7.67
14	2179920		Light Bar (rc)				$ 37.08
15	940014		Hole Plug				$ 18.33
16	WP488488		Screw (2)   (Replaces: 489290)				$ 7.68
17	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 110.16
18	2172931		Heat Shield				$ 70.38
19	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
20	2311632		Control Box Harness   (Replaces: 2187598)				$ 165.96
21	WP1115374		Clip, Wiring   (Replaces: 1115374)				$ 7.75
22	1115375		Clip, Wiring				$ 11.15
23	2200096		Cover, Light Lens				$ 64.10
24	489391		Fastener, Push-on				$ 7.52
25	2211959		Escutcheon, Control Box		Appelez-nous	-
26	2179921		Light Bar (fc)		Appelez-nous	-
27	2181741		Slide, Air Control				$ 90.49
28	489203		Spring Washer		Appelez-nous	-
29	627068		Screw				$ 12.12
31	W10853646		Harness, Indicator Light   (Replaces: 2213462)				$ 124.57
32	2161307		Connectng Rod, Short		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
