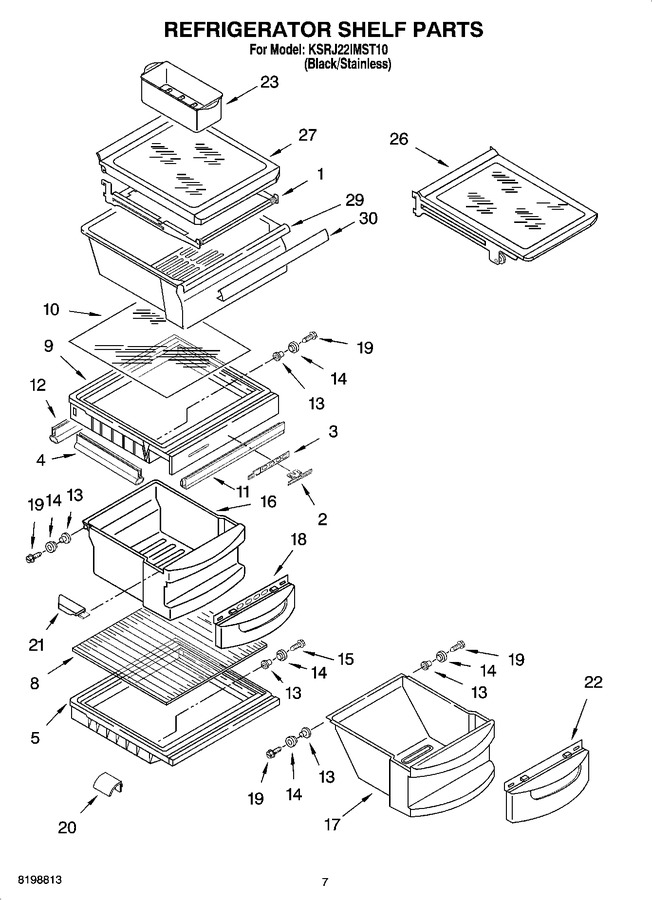

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2195975		Frame Assembly, Slide-out				$ 84.01
2	2174253		Button, Humidity		Appelez-nous	-
3	2174252		Slide, Humidity				$ 15.17
4	2174273		Gasket, Side (2)				$ 41.53
5	WP2223357		Cover, Meat Pan (includes 6, 7, 13, 14, 15 & 20)   (Replaces: 2223357)				$ 259.48
8	2255144		Glass, Meat Pan				$ 88.78
9	2256153		Cover, Crisper (includes 2, 3, 4, 11, 12, 13, 14 & 19)		Appelez-nous	-
10	2255143		Glass, Crisper		Appelez-nous	-
11	WP1125528		Gasket, (front)   (Replaces: 2223361)				$ 153.99
12	2223362		Gasket, (rear)		Appelez-nous	-
13	2174478		Eyelet, Roller				$ 5.70
14	2188212		Roller		Appelez-nous	-
15	WPW10272364		Screw   (Replaces: 489211)			Immediately	$ 10.82
16	2223358		Crisper Pan (includes 13, 14, 18, 19, & 21)		Appelez-nous	-
17	2223359		Meat Pan (includes 13, 14, 19, & 22)				$ 78.46
18	2174076		Window, Crisper				$ 80.62
19	WP489261		Screw   (Replaces: 489261)				$ 7.61
20	2176095		Deflector				$ 87.30
21	2223286		Cap, Crisper Pan (right Side)				$ 20.18
21	2223285		Cap, Crisper Pan (left Side)				$ 21.28
22	WP2174362		Window, Meat Pan   (Replaces: 2174362)				$ 171.20
23	W10136387A		Egg Bin   (Replaces: 2216624)				$ 18.61
26	2206346		Shelf Assembly		Appelez-nous	-
27	2216102		Shelf, Slide-out Assembly		Appelez-nous	-
29	W11497323		Snack Bin   (Replaces: 2188669)				$ 223.66
30	WP2179243		Trim, Handle   (Replaces: 2179243)				$ 104.43
