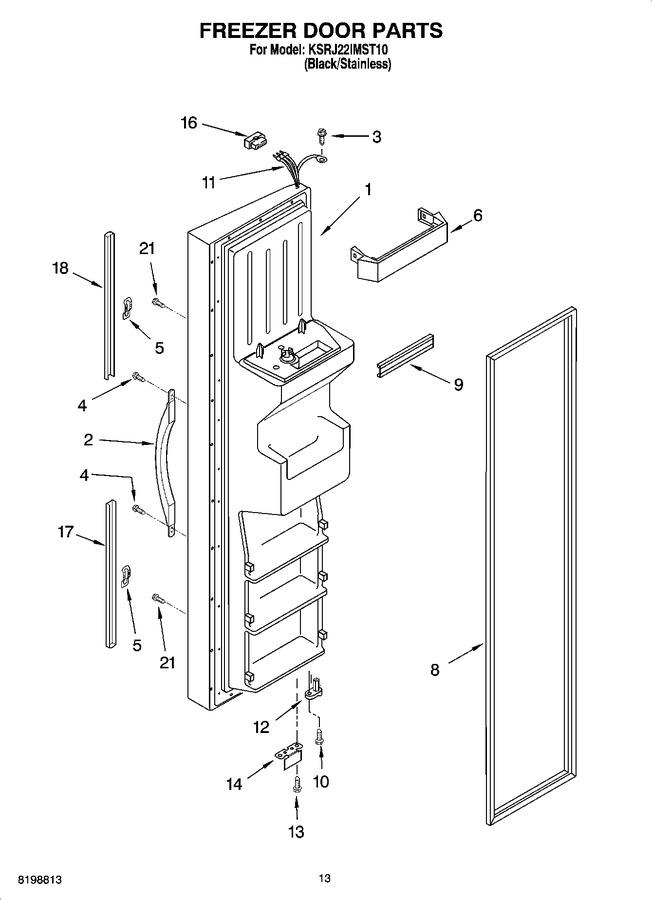

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2206784LB		Freezer Door (includes Item 8 And Dispenser Front Parts) (black/stainless)		Appelez-nous	-
2	WP2217185B		Handle (black)   (Replaces: 2217185B)				$ 190.14
3	WP489128		Screw   (Replaces: 488500)				$ 11.40
4	WP489491		Screw   (Replaces: 489491)				$ 7.30
5	WP2195327		Clip   (Replaces: 2195327)				$ 7.77
6	2171071		Trivet, Shelf (4)		Appelez-nous	-
8	2159080		Door Gasket, Magnetic (black)   (Replaces: 2221312)				$ 325.91
9	WPW10307490		Trim, Door Shelf   (Replaces: 2212375)			Immediately	$ 24.27
10	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
11	2207213		Wire Harness		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	2200082B		Bracket, Door Stop (black)				$ 42.44
16	WP2154473		Connector   (Replaces: 2154473)				$ 24.83
17	2217186B		Extension, Bottom		Appelez-nous	-
18	2217191B		Extension, Top		Appelez-nous	-
21	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
