SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)

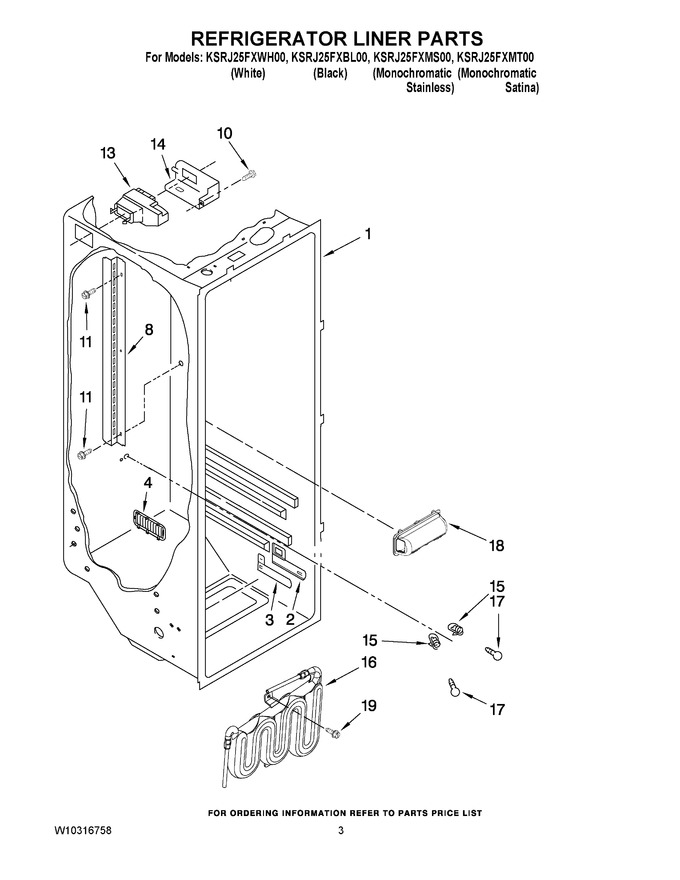

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	W10175967		Escutcheon, Meat Pan Control				$ 77.20
3	2182757		Slide Meat Pan Control				$ 75.15
4	2257741		Louver		Appelez-nous	-
8	2319866		Ladder, Shelf (2)				$ 22.16
10	W10759522		Screw (2)   (Replaces: W10004810)				$ 7.75
11	WP489478		Screw   (Replaces: W10001260)				$ 7.75
13	W10899382		Air Diffuser Assembly (includes Rc & Fc Thermistors)   (Replaces: W10128734)			Immediately	$ 191.85
14	W10128735		Air Diffuser Cover		Appelez-nous	-
15	4387478		Socket   (Replaces: 2162085)			Immediately	$ 110.16
16	WPW10276792		Reservoir   (Replaces: 2307107)				$ 137.57
17	WPA3073101		Light Bulb   (Replaces: 2326255)			Immediately	$ 12.11
18	W11239891		Shield Assy, Light   (Replaces: W10242623)				$ 96.69
19	W10141518		Screw				$ 9.09

    View Diagram in Separate Window       Print Part List
